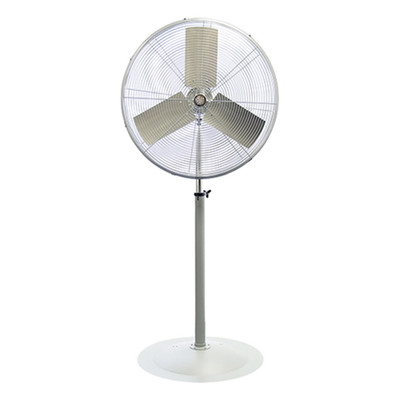

TPI ACU 20-P Industrial Unassembled 20 Inch Air Circulator Pedestal Mount Up To 5,600CFM 120V 1PH 2.4A
$430.08
17 In Stock, Usually Ships In 3-5 Business Days
Free ground shipping to the lower 48 states
- Product ID:
- TPI-ACU-20-P
- UPC:
- 686334868143
- Weight:
- 72.00 (Lbs.)
- Ships By:
- Truck, Curbside, Back Of Truck
- Ships From:
- Tennessee - Factory Direct
Description:
TPI ACU-20-P 20 Inch Industrial Unassembled Pedestal Mounted Circulator, Gray Features:
- Unassembled packaged kits, include: motor, blade, guards & mount (pedestal or wall).
- Steel construction with silver/gray powder coated; steel motor housing painted black.
- Direct drive, Totally Enclosed Air-Over (TEAO) motor generating up to 7,200-CFM’s.
- Aluminum 3-paddle blade system with steel hub and cast aluminum spider connections.
- All models contain a pull-chain switch and 12 foot long SJT-Type cord with grounded plug.
- All models contain self-locking retaining clips to secure front/rear grills and meet OSHA safety requirements.
- Offered in Non-Oscillating (Stationary) and Oscillating fan heads in 20 inch, 24 inch or 30 inch diameter sizes.
- Oscillating models rotates in a 90 degree arc or can be locked in a fixed position.
- Metal gears in the oscillating model allow the fan to operate at a maximum 30 degree downward tilt.
- Pedestal pole adjusts the center of fan from 48 inch to 67 inch tall; bolts to 27 inch diameter steel dome with 5-bolts.
- Motor warranty from 1 or 3-years.
- Made in the U.S.A. with domestic and foreign components.
- Steel construction with silver/gray powder coated; steel motor housing painted black.
- Direct drive, Totally Enclosed Air-Over (TEAO) motor generating up to 7,200-CFM’s.
- Aluminum 3-paddle blade system with steel hub and cast aluminum spider connections.
- All models contain a pull-chain switch and 12 foot long SJT-Type cord with grounded plug.
- All models contain self-locking retaining clips to secure front/rear grills and meet OSHA safety requirements.
- Offered in Non-Oscillating (Stationary) and Oscillating fan heads in 20 inch, 24 inch or 30 inch diameter sizes.
- Oscillating models rotates in a 90 degree arc or can be locked in a fixed position.
- Metal gears in the oscillating model allow the fan to operate at a maximum 30 degree downward tilt.
- Pedestal pole adjusts the center of fan from 48 inch to 67 inch tall; bolts to 27 inch diameter steel dome with 5-bolts.
- Motor warranty from 1 or 3-years.
- Made in the U.S.A. with domestic and foreign components.
SPECIFICATIONS
- Catalog Number: 08681402
- Model Number: ACU 20-P
- Agency Rating: ETL-CUS
- Model Number: ACU 20-P
- Agency Rating: ETL-CUS
- Mounting Description: Pedestal Mounted
- Warranty: 1 Year Limited Warranty
- Fan Style Type: Unassembled - Pedestal Mount
- Fan Size: 22 Inch Diameter
- Blade Size: 20
- CFM High: 3000
- CFM Low: 2600
- Depth: 14.5
- Motor Rating HP: 1/4
- Motor Volt: 120
- Phase: 1
- Blade Size: 20
- CFM High: 3000
- CFM Low: 2600
- Depth: 14.5
- Motor Rating HP: 1/4
- Motor Volt: 120
- Phase: 1
- Amp: 2.5
- RPM High: 1100
- RPM Low: 900
- Speeds: 2
- Voltage: 120
- Weight (lbs): 72
- Color: Gray
- RPM High: 1100
- RPM Low: 900
- Speeds: 2
- Voltage: 120
- Weight (lbs): 72
- Color: Gray
MOTOR SPECIFICATIONS
- 2-Speed.
- 1 Phase, 120V.
- Ball bearing.
- Frame size: 48.
- 2-Speed.
- 1 Phase, 120V.
- Ball bearing.
- Frame size: 48.
- Totally enclosed.
- Permanent split capacitor.
- Permanently lubricated.
- .50 Inch Shaft.
- Permanent split capacitor.
- Permanently lubricated.
- .50 Inch Shaft.
