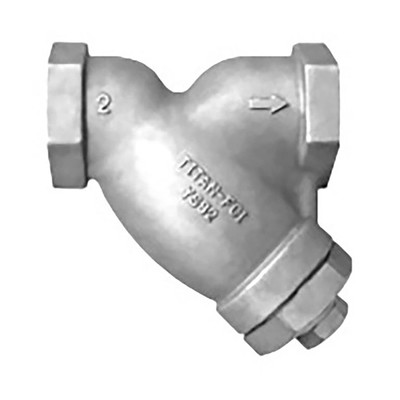

Titan Flow Control YS82A20150 1 1/2 Inch Y Strainer, Stainless Steel Type Alloy 20, ANSI Class 600, Socket Weld Ends, Gasketed Cap, Plugged Blow-off
Titan Flow Control
(No reviews yet)
Write a Review
Write a Review
Titan Flow Control
Titan Flow Control YS82A20150 1 1/2 Inch Y Strainer, Stainless Steel Type Alloy 20, ANSI Class 600, Socket Weld Ends, Gasketed Cap, Plugged Blow-off
$1,085.00
Usually Ships In 1-2 Weeks
Free ground shipping to the lower 48 states
- Product ID:
- Titan-Flow-Control-YS82A20150
- Weight:
- 9.00 (Lbs.)
- Ships By:
- Free Ground
- Ships From:
- North Carolina - Direct From Titan
Description:
Titan Flow Control YS82A20150 Features:
- 1 1/2 Inch Y Strainer.
- Stainless Steel Alloy 20 A351 Gr. CN7M.
- ANSI Class 600.
- Socket Weld Ends.
- Gasketed Caps.
- Plugged Blow-Off.
- Standard 10 Mesh Lined Screen.
- WOG Rating 1200 PSI at 100F.
Additional Features
Rugged High Quality Design:
Titan unit YS81 and YS82 are ideal for petrochemical and other demanding industrial applications that have higher pressure and temperature requirements.
Large Straining Capacity:
With its large body and sizable straining element, provides excellent open area ratios that are typically two and a half times larger than the corresponding pipeline.
Precision Machined Seats:
Precision machined screen seats in both the body and cap help to ensure accurate positioning of the screen during reassembly after cleaning. The machined body seats enable finer filtration by preventing debris bypass.
Self-Cleaning Capability:
This unit can be fitted with a blow-down valve which facilitates cleaning of the straining element. Please contact factory for more information.
