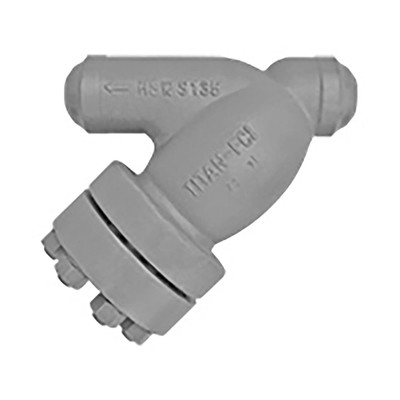

Titan Flow Control YS71C0200 2 Inch Y Strainer, Carbon Steel, ANSI Class 2500, Butt Weld Ends Sch. XXS, Epoxy Painted

(No reviews yet) Write a Review

$5,965.01

Usually Ships In 1-2 Weeks

Free ground shipping to the lower 48 states

Product ID:
Titan-Flow-Control-YS71C0200
Weight:
64.00 (Lbs.)
Ships By:
Truck, Curbside, Back Of Truck
Ships From:
North Carolina - Direct From Titan
Adding to cart… The item has been added
Titan Flow Control YS71C0200 Features:
- 2 Inch Y Strainer.
- Carbon Steel A216 Gr. WCB.
- ANSI Class 2500.
- Butt Weld Ends Sch XXS.
- Epoxy Painted.
- Standard 1/16 Perforation screen.
- WOG Rating 6170 PSI at 100F.

Additional Features

Rugged High Quality Design:
Titan unit YS71 is ideal for petrochemical and other demanding industrial applications that have higher pressure and temperature requirements. This unit employs heavy Gauge screens, to prevent damage to the straining element. Bolt holes are back or spot faced and the outside diameters of the flanges are machined for precision.

Large Straining Capacity:
With its large body and sizable straining element, provides excellent open area ratios that are typically two and a half times larger than the corresponding pipeline.

Precision Machined Seats:
Precision machined screen seats in both the body and cap help to ensure accurate positioning of the screen during reassembly after cleaning. The machined body seats enable finer filtration by preventing debris bypass.

Reusable RTJ Gasket:
Precision machined, RTJ gaskets are preferred for high pressure and high temperature services because they provide a tight, efficient seal and a long service life.

Self-Cleaning Capability:
This unit can be fitted with a blow-down valve which facilitates cleaning of the straining element. Please contact factory for more information.
