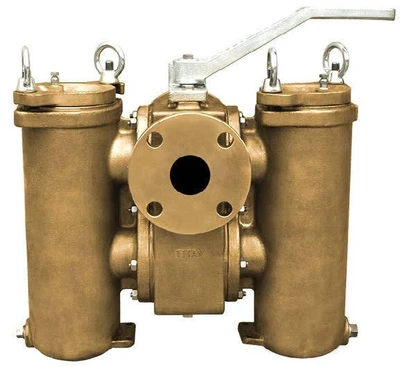

Titan Flow Control DS696AB0300 3 Inch Duplex Strainer, Aluminum Bronze, ASME Class 150, Flanged Ends

(No reviews yet) Write a Review

Titan Flow Control

$15,886.60

Usually Ships In 1-2 Weeks

Shipping truck icon

Free ground shipping to the lower 48 states

Product ID:
Titan-Flow-Control-DS696AB0300
Weight:
238.00 (Lbs.)
Ships By:
Truck, Curbside, Back Of Truck
Ships From:
North Carolina - Direct From Titan
Titan Flow Control DS696AB0300 Features:
- 3 Inch Duplex Strainer.
- Aluminum Bronze B148.
- ANSI Class 150.
- Flanged Ends.
- Standard 1/16 Perforation.
- WOG Rating 195 PSI at 100.

Additional Features

Easy to Operate:
Titan FCI's Duplex Strainer features a low torque, easy to operate handle that does not require a gearbox.

Reduced In-Line Maintenance:
The dual/quad ball design isolates each chamber and keeps the servicing chamber dry during cleaning, an no special tools are required to access and remove the straining element from the chamber.

Endless Screen Options:
This strainer can be fitted with virtually any configuration of perforation or mesh lined straining elements. Straining elements can also be constructed from special materials such as Alloy 20.
