Description:

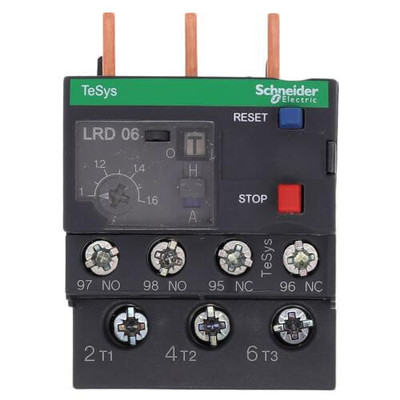

TeSys LRD Thermal Overload Relay (1-1.6A, Class 10)
Specifications:
Range: TeSys
Product or Component Type: Differential Thermal Overload Relay
Relay Application: Motor Protection
Product Compatibility: LC1D25, LC1D32, LC1D12, LC1D18, LC1D38, LC1D09
Network Type: DC, AC
Thermal Protection Adjustment Range: 1…1.6 A
[Ui] Rated Insulation Voltage: Power Circuit 600 V CSA, Power Circuit 600 V UL, Power Circuit 690 V IEC 60947-4-1
Network Frequency: 0...400 Hz
Mounting Support: Plate, with Specific Accessories, Rail, with Specific Accessories, under Contactor
Tripping Threshold: 1.14 +/- 0.06 Ir IEC 60947-4-1
[Ith] Conventional Free Air Thermal Current: 5 A Signalling Circuit
Permissible Current: 3 A 120 V AC-15 Signalling Circuit, 0.22 A 125 V DC-13 Signalling Circuit
[Ue] Rated Operational Voltage: 690 V AC 0...400 Hz
[Uimp] Rated Impulse Withstand Voltage: 6 kV
Phase Failure Sensitivity: Tripping Current 130 % of Ir on Two Phase, the Last One at 0
Control Type: Red Push-Button Stop, Blue Push-Button Reset
Temperature Compensation: -4…140 °F (-20…60 °C)
Connections - Terminals: Control Circuit Screw Clamp Terminals 2 0.00…0.00 in² (1…2.5 mm²) Flexible without Cable End, Control Circuit Screw Clamp Terminals 2 0.00…0.00 in² (1…2.5 mm²) Flexible with Cable End, Control Circuit Screw Clamp Terminals 2 0.00…0.00 in² (1…2.5 mm²) Solid without Cable End, Power Circuit Screw Clamp Terminals 1 0.00…0.02 in² (1.5…10 mm²) Flexible without Cable End, Power Circuit Screw Clamp Terminals 1 0.00…0.01 in² (1…4 mm²) Flexible with Cable End, Power Circuit Screw Clamp Terminals 1 0.00…0.01 in² (1…6 mm²) Solid without Cable End
Tightening Torque: Control Circuit 15.05 lbf.in (1.7 N.m) Screw Clamp Terminals, Power Circuit 15.05 lbf.in (1.7 N.m) Screw Clamp Terminals
Protective Treatment: TH IEC 60068
IP Degree of Protection: IP20 IEC 60529
Ambient Air Temperature for Operation: -4…140 °F (-20…60 °C) without Derating IEC 60947-4-1
Ambient Air Temperature for Storage: -76…158 °F (-60…70 °C)
Flame Retardance: V1 UL 94
Mechanical Robustness: Vibrations 6 Gn IEC 60068-2-6, Shocks 15 Gn for 11 ms IEC 60068-2-7
Dielectric Strength: 6 kV 50 Hz IEC 60255-5
Standards: IEC 60947-5-1, EN 60947-4-1, CSA C22.2 No 14, ATEX D 94/9/CE, EN 60947-5-1, UL 508, IEC 60947-4-1
Product Certifications: CSA, BV, GOST, ATEX INERIS, UL, DNV, RINA, LROS (Lloyds register of shipping), GL, CCC
Warranty: 18 Months
