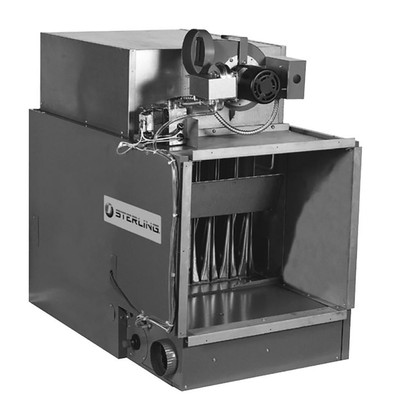

Sterling QVSD400B3P2AB1 Propane, 115V, 321 Stainless, 400000 BTUH Input, 2 Stage, Separated Combustion, Left Hand Controls
Sterling
(No reviews yet)
Write a Review
Write a Review
Sterling
Sterling QVSD400B3P2AB1 Propane, 115V, 321 Stainless, 400000 BTUH Input, 2 Stage, Separated Combustion, Left Hand Controls
$7,329.02
Usually Ships in 5-6 Weeks
Free ground shipping to the lower 48 states
- Product ID:
- Sterling-QVSD400B3P2AB1
- Weight:
- 403.00 (Lbs.)
- Ships By:
- Truck, Curbside, Back Of Truck
- Ships From:
- North Carolina - Direct From Sterling
Description:
Sterling QVSD400B3P2AB1 Duct Furnace Standard Features:
- Left side control access (determined while facing the direction of airflow).
- Enclosed combustion system.
- 321 Stainless steel clam shell style heat exchanger.
- Propane.
- 2 Stage gas control.
- 2 Stage gas control.
- 115V main power with 24V control transformer.
- 80 Percent Thermal Efficiency.
- 80 Percent Thermal Efficiency.
- Traditional clam shell style heat exchanger.
- Power vented.
- 20-gauge steel jacket with baked enamel finish.
- Spark ignited intermittent pilot with flame supervision.
- 4 Suspension points.
- Combustion air pressure switch.
- High limit switch.
- Power vented.
- 20-gauge steel jacket with baked enamel finish.
- Spark ignited intermittent pilot with flame supervision.
- 4 Suspension points.
- Combustion air pressure switch.
- High limit switch.
DESCRIPTION
Sterling indoor duct furnaces offer 80 percent thermal efficiency, Enerpak models add annual fuel savings of 20-25 percent. The Enerpak models feature spark ignition, eliminating standing pilot losses. The power venting system virtually eliminates the off-cycle loss of heated air common to conventional gravity vented heaters. Horizontal power venting allows the use of smaller, single wall vent pipe and adds savings through sidewall penetration versus roof openings. Left side access to controls is standard. Right hand access is optional. For tandem applications order 1 left hand and 1 right hand.
Sterling indoor duct furnaces offer 80 percent thermal efficiency, Enerpak models add annual fuel savings of 20-25 percent. The Enerpak models feature spark ignition, eliminating standing pilot losses. The power venting system virtually eliminates the off-cycle loss of heated air common to conventional gravity vented heaters. Horizontal power venting allows the use of smaller, single wall vent pipe and adds savings through sidewall penetration versus roof openings. Left side access to controls is standard. Right hand access is optional. For tandem applications order 1 left hand and 1 right hand.
CERTIFICATION
Duct furnaces are designed for ducted air systems for heating, heating/cooling or make-up air and utilize a separate blower for air delivery. All Sterling duct furnaces are ETL certified for use on natural or propane gases, installation upstream (409 stainless steel heat exchanger recommended) or downstream of cooling coils, for temperature rises of 30F to 80F (17-44C) and to operate against 2.0 inches (0.5 kPa) water column pressure. All Enerpak models are approved for use in Canada.
CAPACITIES & HEAT EXCHANGERS
Seven model capacities from 100,000 to 400,000 Btu/Hr. (29.3 to 117.1 kW) are offered and all may be ordered with heat exchangers fabricated from 20-gauge Aluminized Steel (standard) or optional types 409 or 321 Stainless Steel. We recommend the use of stainless steel heat exchangers where entering air temperature is below 40F (4.4C) and /or duct furnaces are located downstream from cooling coils.
