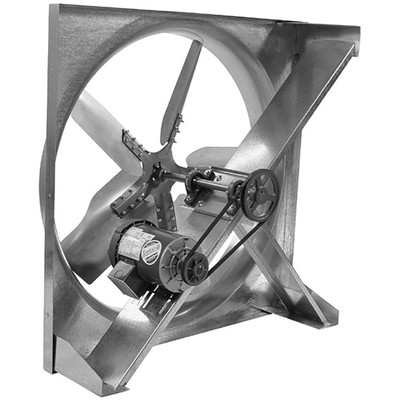

Soler And Palau LCS60WH3S 60 Inch Belt Drive Wall Supply Fan, 36017 CFM, 208-230/460V/3Ph

Soler And Palau LCS60WH3S 60 Inch Belt Drive Wall Supply Fan, 36017 CFM, 208-230/460V/3Ph

(No reviews yet) Write a Review
$2,782.68

Usually Ships In 8-10 Weeks

Free ground shipping to the lower 48 states

Questions? Contact us
Product ID:
Soler-And-Palau-LCS60WH3S
UPC:
812961017351
Weight:
790.00 (Lbs.)
Ships By:
Truck, Curbside, Back Of Truck
Ships From:
Florida - Direct From Soler And Palau

Links To Product Literature:

Soler And Palau LCE Installers Guide
Soler And Palau LCE Submittal
Soler And Palau LCE Installers Guide

choose options:

Frequently Bought Together

Please choose options for all selected products

Description:

Soler And Palau LCS60WH3S Belt Drive Wall Exhaust Fan Features:
- Heavy-gauge galvanized steel panel.
- Die formed galvanized steel blades.
- Drives are sized for a minimum 150 percent of drive horsepower.
- AMCA Air and Sound Licensed.
- UL Listed.
- cULus 705 Listed.

Additional Information:
LCE (exhaust) and LCS (supply) are high capacity belt driven propeller fans rated from 3,000 to 40,000 CFM, with static pressure capability up to 5/8" w.g. Their primary application is the exhaust or supply of large volumes of air at relatively low static pressures from commercial, light industrial and agricultural buildings such as manufacturing and assembly plants, warehouses, parking garages, gymnasiums, equipment rooms, distribution centers, poultry houses, and greenhouses.

Wall mounting provides an easy, economical installation. Belt driven fans provide large volumes of air at low fan speeds and low noise levels and afford quick, easy performance adjustments. All necessary accessories are available to meet any need or specification.

LC's can be suspended from the ceiling to direct large volumes of air downward toward work centers, improving employee comfort and productivity.

When mounted in portable housings with OSHA guards, LC-P's can be used as a man-cooler and rolled to hot spots to provide needed employee relief from heat or fumes to help increase productivity.
