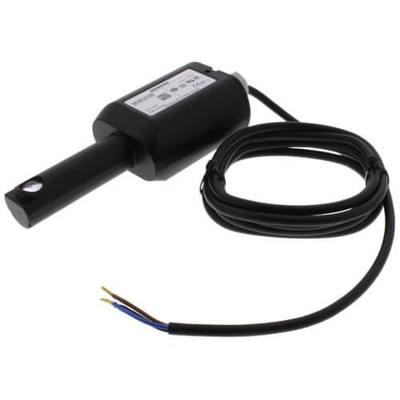

Siemens Combustion QRI2B2.B180B Flame Detector (Side Viewing)

Siemens

(No reviews yet) Write a Review

$1,096.57

1 In Stock, Orders Placed By 3pm EST Ship Same Day (Weekends And Holidays Excluded)

Free ground shipping to the lower 48 states

Questions? Contact us

Product ID:: QRI2B2.B180B
UPC:
Weight:: 0.48 (Lbs.)
Ships From:: Illinois
Ships By:: Free Ground, Or Choose Expedited Shipping At Checkout

Frequently Bought Together

Total Price:
Add to Cart

Please choose options for all selected products

This Item: Siemens Combustion QRI2B2.B180B Flame Detector (Side Viewing)

MSRP:

Was:

$1,096.57

(You save )

Description:

Siemens Infrared Flame Detectors Infrared flame detectors for use with Siemens burner controls, for the supervision of gas, oil and other flames that emit infrared light. The QRI... are suited for burners of any capacity, either in continuous or intermittent operation. Features: - Detector with infrared-sensitive flame detecting element - Integrated flame signal amplifier - Designed for frontal and lateral (90°) illumination - Suited for use with burner controls type LMV5... - Secured to the burner with flange and clamp The spectral sensitivity of the QRI... is a maximum of about 2 μm covering infrared radiation emitted by gas, oil, and coal flames as well as other sources of infrared light. Owing to electronic self-supervision of the flame signal, the QRI... can be used in connection with suitable burner controls designed for burners in continuous or intermittent operation. The sensitivity of the QRI... is such that it must be fitted behind the burner’s baffle plate.
