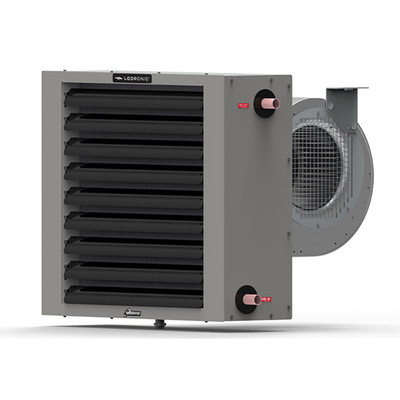

Modine BCH218SC01NA Lodronic Hydronic Unit Heater, Blower Unit, 115V, Enclosed Motor

(No reviews yet) Write a Review

$7,148.79

Usually Ships In 4-5 Weeks

Free ground shipping to the lower 48 states

Product ID:
Modine-BCH218SC01NA
Weight:
400.00 (Lbs.)
Ships By:
Truck, Curbside, Back Of Truck
Ships From:
Virginia - Direct From Modine
Choose Options

choose options:

Adding to cart… The item has been added
Modine BCH218SC01NA Lodronic Hydronic Unit Heater Features:
- FP 32102.
- High-efficiency blower model designed for Lodronic low-temperature hydronic systems.
- Direct replacement for discontinued GLW low-temperature hydronic unit heater series.
- Blower-driven airflow optimized for static-pressure and ducted applications.
- Quieter operation compared to traditional unit heater designs with propeller fans.
- Suitable for larger and more demanding hydronic heating environments.
- Copper coil rated for Up to 150 PSIG hot water pressure / 180F (82C) operating temperature.
- Continuous duty rated motor, maximum ambient operating temperature 104F (40C).
- Side supply and return connections for installation in low-clearance spaces.
- Blower fan design ideal for systems requiring static pressure.
- Two-piece casing construction for easy coil access and maintenance.
- Serpentine copper tube coil design for high thermal shock resistance.
- No coil headers = reduced leak risk.
- Increased coil face area without increasing unit size.
- Optimized for higher water capacity with lower friction loss.

Additional Features:
The Modine BCH Lodronic Blower Series represents the next evolution in low-temperature hydronic heating, combining the proven performance of the Lodronic platform with enhanced efficiency, quieter operation, and superior airflow control. Designed as a direct replacement for the discontinued GLW series, BCH units deliver powerful, consistent heating in demanding applications while excelling in static-pressure and ducted environments where traditional unit heaters fall short. With a durable, high-capacity copper coil, easy-access two-piece construction, and flexible installation options, the BCH series offers unmatched reliability, serviceability, and performance—making it the ideal choice for modern hydronic heating systems that demand both efficiency and versatility.
