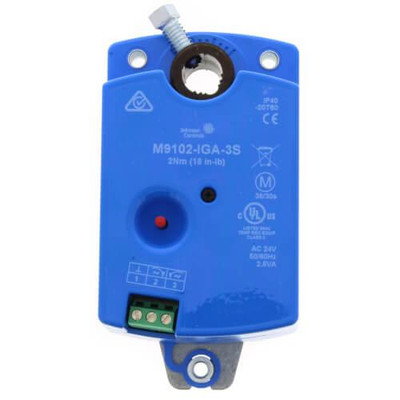

Johnson Controls M9102-IGA-3S Electric Damper Actuator, Direct Mount, Non-Spring Return, 24V, 50/60 HZ

(No reviews yet) Write a Review

$133.81

Usually Ships In 5-6 Weeks

Free ground shipping to the lower 48 states

Product ID:
V01-Johnson-Controls-M9102-IGA-3S
Weight:
2.00 (Lbs.)
Ships By:
Free Ground, Or Choose Expedited Shipping At Checkout
Ships From:
Illinois - Direct From Supplier

Temporarily Out Of Stock - Can Be Ordered From A Quote

We are currently awaiting a resupply shipment.
To purchase this backordered item now, please click “REQUEST A QUOTE” below and we will email a quote you can order from!

Johnson Controls M9102-IGA-3S Electric Damper Actuator Features:
- 24 VAC.
- 50/60 HZ.
- Direct Mount.
- Non-Spring Return.
- Floating Control Without Timeout.
- 18 LB-In Torque.
- 30 Second Travel Time.
- Screw Terminals.

Additional Features:

The Johnson Controls M9102-IGA-3S is a direct-mount, non-spring return electric damper actuator designed for HVAC dampers, VAV boxes, and zone control applications. It operates on 24 VAC, provides floating or on/off control with timeout, delivers 18 LB·In torque, and has a 30-second travel time for 90 degree rotation at 60 Hz 36 seconds at 50 Hz. It features M3 screw terminal connections, 93 degree rotation, no auxiliary switches.
