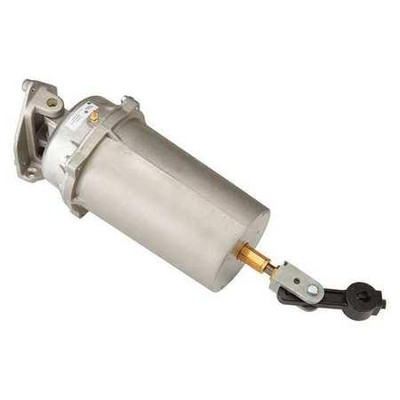

Johnson Controls D-3246-1 Pneumatic Piston Damper Actuator, Swivel Mounted With Bracket, Die Cast Aluminum Body, 8-13 PSI

(No reviews yet) Write a Review

$1,368.53

10 In Stock, Orders Placed By 3pm EST Ship Same Day (Weekends And Holidays Excluded)

Free ground shipping to the lower 48 states

Product ID:
V01-Johnson-Controls-D-3246-1
UPC:
78502816820
Weight:
15.00 (Lbs.)
Ships By:
Free Ground, Or Choose Expedited Shipping At Checkout
Ships From:
Illinois - Direct From Supplier
Adding to cart… The item has been added

Johnson Controls D-3246-1 Pneumatic Piston Damper Actuator Features:
- Swivel Mounted With Bracket.
- Clevis And Crankarm.
- 8-13 PSI Spring Range.
- 6 Inch Stroke.
- 23.4 Inch Diaphragm.
- 25 PSI Maximum Control Air Pressure.
- 1/8 Inch NPT Barbed Fitting.
- 2 SCIM Maximum Air Consumption.
- Die Cast Aluminum Body.

Additional Features:
The Johnson Controls D-3246-1 is a pneumatic piston damper actuator with a 6-inch stroke, 8–13 psi spring range, 25 psi maximum control pressure, and swivel mount bracket with clevis and crank arm for versatile installation. Designed to provide high positioning force, it is used to operate large HVAC dampers.
