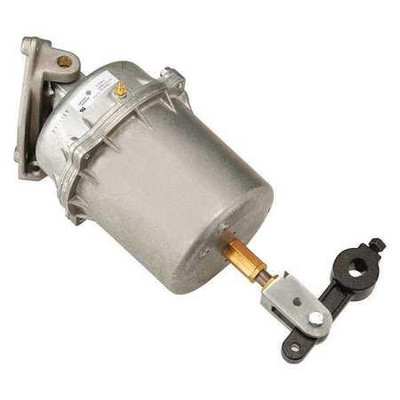

Johnson Controls D-3244-4 Pneumatic Piston Damper Actuator, Swivel Mounted With Bracket, Die Cast Aluminum Body, 8-13 PSI

(No reviews yet) Write a Review

$942.90

3 In Stock, Orders Placed By 3pm EST Ship Same Day (Weekends And Holidays Excluded)

Free ground shipping to the lower 48 states

Product ID:
V01-Johnson-Controls-D-3244-4
UPC:
78502816807
Weight:
22.00 (Lbs.)
Ships By:
Free Ground, Or Choose Expedited Shipping At Checkout
Ships From:
Illinois - Direct From Supplier
Adding to cart… The item has been added

Johnson Controls D-3244-4 Pneumatic Piston Damper Actuator Features:
- Swivel Mounted With Bracket.
- Clevis And Crankarm.
- 8-13 PSI Spring Range.
- 4 Inch Stroke.
- 23.4 Inch Diaphragm.
- 25 PSI Maximum Control Air Pressure.
- 1/8 Inch NPT Barbed Fitting.
- 2 SCIM Maximum Air Consumption.
- Die Cast Aluminum Body.

Additional Features:

The Johnson Controls D-3244-4 is a pneumatic piston damper actuator with a 4-inch stroke and an 8–13 psig spring range, designed to provide high-force, modulating or two-position control of large HVAC dampers, inlet vanes on fans and compressors, and compatible butterfly valves. It features a die-cast aluminum housing, synthetic elastomer diaphragm, 25 psig maximum control pressure.
