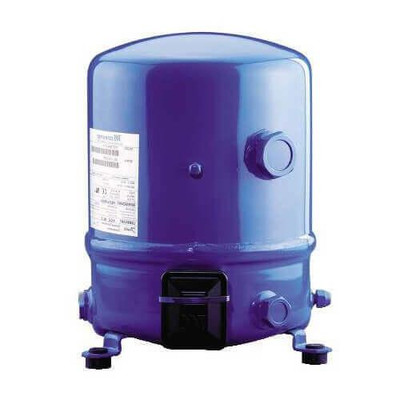

Danfoss MTZ64-3VI Hermetic Reciprocating Compressor, 200-230V, 5.5 HP, 3 PH, 60 HZ, 36056/44404 BTU

(No reviews yet) Write a Review

$2,248.86

Usually Ships In 5-6 Weeks

Free ground shipping to the lower 48 states

Product ID:
V01-Danfoss-MTZ64-3VI
Weight:
85.00 (Lbs.)
Ships By:
Truck, Curbside, Back Of Truck
Ships From:
Illinois - Direct From Supplier

Temporarily Out Of Stock - Can Be Ordered From A Quote

We are currently awaiting a resupply shipment.
To purchase this backordered item now, please click “REQUEST A QUOTE” below and we will email a quote you can order from!

Danfoss MTZ64-3VI Hermetic Reciprocating Compressor Features:
- 200-230V.
- 5.5 HP.
- 3 PH.
- 60 HZ.
- 36056/44404 BTU.
- R404A, R407C, R134A, R407F, R507A.
- Evaporator Temperature 20/45 F.
- Condenser Temperature 120/130 F.
- Super Heat 20 F.
- Sub Cooling 15 F.
- 1-3/4 Inch Rotolock Suction.
- 7/8 Inch ODF Sweat Sleeve.
- 1-1/4 Inch Rotolock Discharge Liquid.
- 3/4 Inch ODF Sweat Sleeve.
- 3/8 Inch NPT Oil Equalization Connection.

Additional Features:
The Danfoss MTZ64-3VI is a hermetic, fixed-speed reciprocating compressor featuring a two-cylinder design with a swept volume of 107.71 cm³ and an initial 1.8-liter charge of 175PZ polyol ester POE oil. Operating on a three-phase, 200–230V, 60Hz power supply at 3500 RPM, this 5.5 HP unit utilizes an internal overload protector.
