Description:

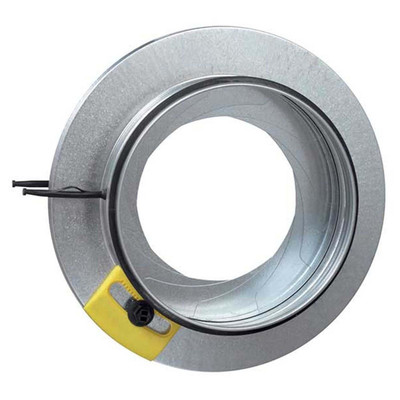

Continental Fan IRIS-08 8 Inch Galvanized IRIS Damper Features:
- Precise airflow measurement.
- Accurate air balancing to +/- 5% in a straight duct.
- Single station measurement and control.
- Reduced field labor time.
- Hot dipped galvanized steel construction.
- Fitted EPDM gasket for airtight mounting.
- Compact design, superior performance.
- Fully retractable blades for duct cleaning.
- Max operating temperature: 180 F continuous and 250 F intermittent.
- Available in ten sizes: 4 inch through 32 inch diameter.
- Capacities: 15 cfm to 20,000 cfm.
Positive Seal Construction (Optional)
Some applications may require a fully closed damper. For those requiring a 100% shutoff, a positive seal option is available on sizes 4 inch through 12 inch, in both galvanized and stainless steel IRIS dampers.
Additional Features
IRIS dampers are a brilliantly simple solution for fast and exact measurement, balance and control of airflow. They are ideal for supply and exhaust tracking control, individual comfort control, and any space requiring accurate airflow regulation. For example, office buildings, pharmaceuticals, clean room environments, and laboratories are applications suitable for IRIS dampers. Its unique design allows for airflow to be measured and controlled at a single station. As a result, it saves time and money in initial installation and commissioning, and those applications requiring air balance on a regular basis.
IRIS dampers are comprised of a casing, damper blades, an adjustment or regulating nut, an airflow adjustment chart, and airflow taps. Blades and casing are manufactured from galvanized steel or 316 stainless steel IRIS-S. The remaining components are made from high strength plastics and rubber.
