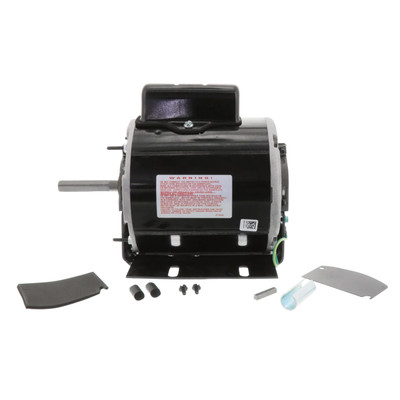

Century Motors C045A Direct Drive Fan Motor, 1/4HP, 115/230V, 1100 RPM, Single Phase

(No reviews yet) Write a Review

$394.40

2 In Stock, Orders Placed By 3pm EST Ship Same Day (Weekends And Holidays Excluded)

Free ground shipping to the lower 48 states

Product ID:
V01-Century-Motors-C045A
Weight:
11.00 (Lbs.)
Ships By:
Free Ground, Or Choose Expedited Shipping At Checkout
Ships From:
Illinois - Direct From Supplier
Adding to cart… The item has been added

Century Motors C045A Direct Drive Fan Motor Features:
- 1/4Hp.
- 115/230V.
- 1100Rpm.
- Single Phase.
- 1 Speed.
- 4.0-2.0 Amps.
- 48Z Nema Frame Size.
- Enclosed.
- Ball Bearing.
- Resilient Base.
- 1/2" x 3 1/4" Shaft.
- Reversible Rotation.

Additional Features:
The Century Motors C045A is a permanent split capacitor (PSC) direct drive fan motor rated at 1/4 HP, operating at 1100 RPM, single speed, on 115/230V single-phase 60 Hz power with 4.0/2.0 amps draw. It features a 48Z frame, TEAO (Totally Enclosed Air Over) enclosure, ball bearings, automatic thermal protection, resilient base mounting, reversible rotation, and is designed for air-over continuous duty.
