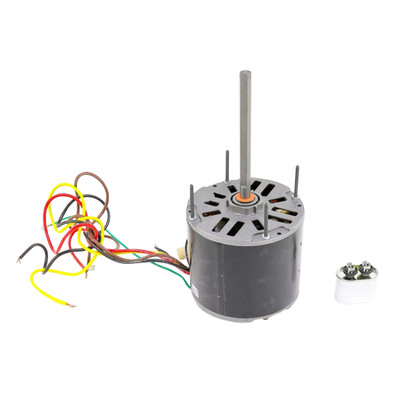

Century Motors BDH1024 Direct Drive Motor, 460V, 1/4-1/6HP, 1625 RPM, Ball Bearing

(No reviews yet) Write a Review

$390.25

Usually Ships In 5-6 Weeks

Free ground shipping to the lower 48 states

Product ID:
V01-Century-Motors-BDH1024
Weight:
11.00 (Lbs.)
Ships By:
Free Ground, Or Choose Expedited Shipping At Checkout
Ships From:
Illinois - Direct From Supplier

Temporarily Out Of Stock - Can Be Ordered From A Quote

We are currently awaiting a resupply shipment.
To purchase this backordered item now, please click “REQUEST A QUOTE” below and we will email a quote you can order from!

Century Motors BDH1024 Direct Drive Motor Features:
- 460V.
- 1/4-1/6Hp.
- 1625Rpm.
- 5 5/8" Diameter.
- Ball Bearing.
- Semi Enclosed.
- Electrically Reversible.
- Continuous Duty Air Over.

Additional Features:
The Century Motors BDH1024 is a high-efficiency, permanent split capacitor (PSC) direct-drive motor specifically designed for HVAC/R fan and blower applications, including condenser fans and heat pumps. This single-phase, 2-speed motor operates at 460V with a rated speed of 1625 RPM and a versatile power output of 1/4 to 1/6 HP. Built for durability in demanding environments, it features a 5-5/8" diameter, ball bearings, and a semi-enclosed "Air Over" (OAO) design rated for a 60°C ambient temperature.
