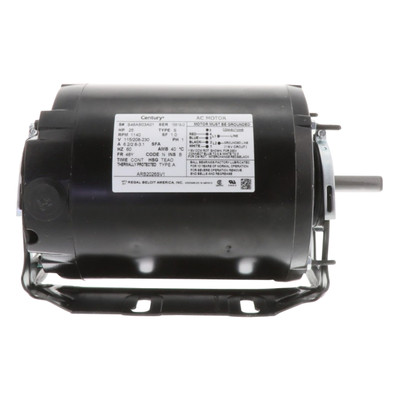

Century Motors ARB2026SV1 Belt Drive Blower Motor, 1/4HP, 115/208-230V, 1140 RPM, Single Phase

(No reviews yet) Write a Review

$451.73

1 In Stock, Orders Placed By 3pm EST Ship Same Day (Weekends And Holidays Excluded)

Free ground shipping to the lower 48 states

Product ID:
V01-Century-Motors-ARB2026SV1
Weight:
11.00 (Lbs.)
Ships By:
Free Ground, Or Choose Expedited Shipping At Checkout
Ships From:
Illinois - Direct From Supplier
Adding to cart… The item has been added

Century Motors ARB2026SV1 Belt Drive Blower Motor Features:
- 1/4Hp.
- 115/208-230V.
- 1140Rpm.
- Single Phase.
- Belt Drive.
- 1 Speed.
- 6.2/2.8-3.1 Amps.
- 48Z Frame Size.
- Totally Enclosed Air Over.
- Ball Bearing.
- 1/2" Diameter Shaft.
- Reversible Rotation.
- Resilient Base Mounting.

Additional Features:
Century Motors ARB2026SV1 is a split-phase belt-drive blower motor rated at 1/4 HP (0.25 HP), operating at approximately 1140-1200 RPM, on 115/208-230V single-phase 60 Hz power with 6.2/2.8-3.1 amps. It features a 48Y frame, TEAO enclosure for protection in air-stream cooled applications, resilient cradle base mounting, ball bearings, automatic overload protection, and a shaft typically 1/2 inch diameter by 1-5/8 inch long.
