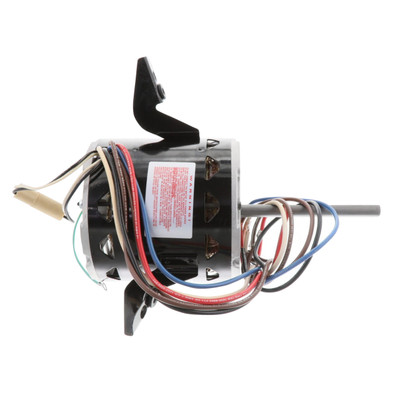

Century Motors 9434A Permanent Split Capacitor Motor, 277V, 1/2-1/3-1/4HP, 1075 RPM, Single Phase

(No reviews yet) Write a Review

$535.14

21 In Stock, Orders Placed By 3pm EST Ship Same Day (Weekends And Holidays Excluded)

Free ground shipping to the lower 48 states

Product ID:
V01-Century-Motors-9434A
Weight:
22.00 (Lbs.)
Ships By:
Free Ground, Or Choose Expedited Shipping At Checkout
Ships From:
Illinois - Direct From Supplier
Adding to cart… The item has been added

Century Motors 9434A Permanent Split Capacitor Motor Features:
- 277V.
- 1/2-1/3-1/4Hp.
- 1075Rpm.
- Single Phase.
- 3 Speed.
- 1.3-1.1 Amps.
- 48Y Nema Frame Size.
- Open Air.
- Sleeve Bearing.
- Fleximount.
- 1/2" x 5 1/2" Shaft.
- Reversible Rotation.

Additional Features:
The Century 9434A is a 5-5/8" diameter, permanent split capacitor (PSC) motor designed primarily for HVAC/R applications, including direct-drive blowers, fan coils, and room air conditioners. Operating at 277V (single phase, 60 Hz), it provides a maximum output of 1/2 HP with three distinct speed taps that allow it to also cover 1/3 HP and 1/4 HP requirements. Key technical features include a rated speed of 1075 RPM, reversible rotation, and an Open Air Over (OAO) enclosure suitable for continuous duty in temperatures up to 60°C.
