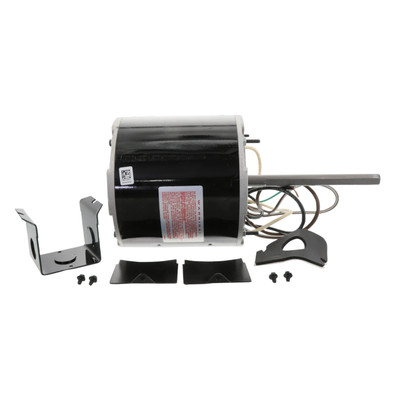

Century Motors 789A Permanent Split Capacitor Motor, 1/3HP, 460V, 1075 RPM, Single Phase

(No reviews yet) Write a Review

$397.15

Usually Ships In 5-6 Weeks

Free ground shipping to the lower 48 states

Product ID:
V01-Century-Motors-789A
Weight:
11.00 (Lbs.)
Ships By:
Free Ground, Or Choose Expedited Shipping At Checkout
Ships From:
Illinois - Direct From Supplier

Temporarily Out Of Stock - Can Be Ordered From A Quote

We are currently awaiting a resupply shipment.
To purchase this backordered item now, please click “REQUEST A QUOTE” below and we will email a quote you can order from!

Century Motors 789A Permanent Split Capacitor Motor Features:
- 1/3Hp.
- 460V.
- 1075Rpm.
- Single Phase.
- 1 Speed.
- 1.0 Amps.
- F48Y Nema Frame Size.
- Enclosed, Ball Bearing.
- 1/2" x 6" Shaft.
- Reversible Rotation.
- Permanent Split Capacitor Motor.

Additional Features:
The Century Motors 789A is a permanent split capacitor (PSC) condenser fan motor designed for HVAC, refrigeration, and heat pump applications. It provides 1/3 HP, operates at 1075 RPM with single speed, runs on 460V single-phase 60 Hz power drawing 1.0 amp, and features a 48Y frame (5-5/8 inch or 5.6 inch diameter), ball bearings, automatic thermal overload protection, all-angle mounting, reversible rotation, TEAO enclosure for outdoor use, and requires a 7.5 MFD 370V capacitor.
