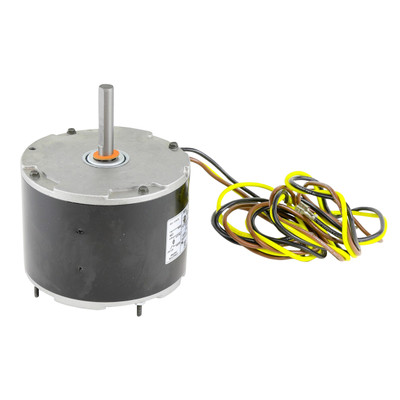

Century Motors 743A Permanent Split Capacitor Motor, 1/6HP, 208-230V, 825 RPM, Single Phase

(No reviews yet) Write a Review

$265.51

1 In Stock, Orders Placed By 3pm EST Ship Same Day (Weekends And Holidays Excluded)

Free ground shipping to the lower 48 states

Product ID:
V01-Century-Motors-743A
Weight:
11.00 (Lbs.)
Ships By:
Free Ground, Or Choose Expedited Shipping At Checkout
Ships From:
Illinois - Direct From Supplier
Adding to cart… The item has been added

Century Motors 743A Permanent Split Capacitor Motor Features:
- 1/6Hp.
- 208-230V.
- 825Rpm.
- Single Phase.
- 1 Speed.
- 1.0 Amps.
- F48Y Frame Size.
- Totally Enclosed Air Over.
- Sleeve Bearing.
- 1/2" Diameter Shaft.
- CCW Lead End Rotation with Vertical Shaft Down Orientation.
- Extended Studs Mounting.

Additional Features:
The Century Motors 743A is a permanent split capacitor (PSC) OEM replacement motor designed for HVAC condenser fan applications. It delivers 1/6 HP at 825 RPM (single speed), operates on 208-230V single-phase 60 Hz power drawing 1.0 amp, and features a 48Y / 5-5/8" diameter frame, enclosed (TEAO) construction, sleeve bearings, automatic overload protection, extended stud or band mounting, and CCWLE (counter-clockwise lead end) rotation.
