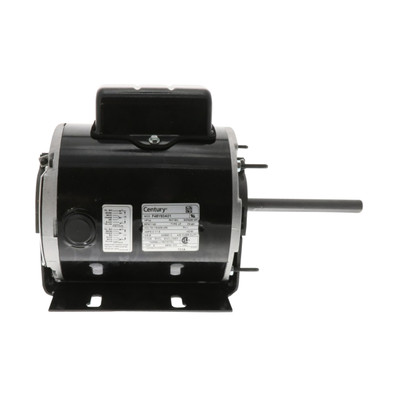

Century Motors 731A Permanent Split Capacitor Motor, 1/4HP, 115/208-240V, 1140 RPM, Single Phase

(No reviews yet) Write a Review

$532.40

4 In Stock, Orders Placed By 3pm EST Ship Same Day (Weekends And Holidays Excluded)

Free ground shipping to the lower 48 states

Product ID:
V01-Century-Motors-731A
Weight:
11.00 (Lbs.)
Ships By:
Free Ground, Or Choose Expedited Shipping At Checkout
Ships From:
Illinois - Direct From Supplier
Adding to cart… The item has been added

Century Motors 731A Permanent Split Capacitor Motor Features:
- 1/4Hp.
- 115/208-240V.
- 1140Rpm.
- Single Phase.
- 1 Speed.
- 3.1-1.6 Amps.
- F48Y Nema Frame Size.
- Enclosed, Ball Bearing.
- Resilient.
- 1/2" x 5" Shaft.
- Reversible Rotation.

Additional Features:
The Century Motors 731A is a permanent split capacitor (PSC) unit heater motor rated at 1/4 HP, operating at 1140 RPM (1-speed) on 115/208-230V single-phase 60 Hz power, drawing 3.1/1.6 amps. It features a 48Y frame, TEAO (Totally Enclosed Air Over) enclosure, ball bearings, automatic thermal overload protection, resilient base mounting, reversible rotation, Class B insulation, and continuous duty rating.
