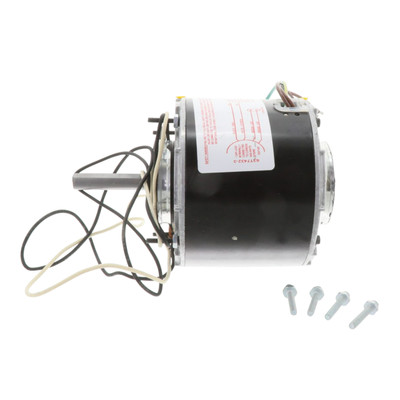

Century Motors 360 Permanent Split Capacitor Motor, 1/6HP, 115V, 1075 RPM, Single Phase

(No reviews yet) Write a Review

$377.27

Usually Ships In 5-6 Weeks

Free ground shipping to the lower 48 states

Product ID:
V01-Century-Motors-360
Weight:
6.00 (Lbs.)
Ships By:
Free Ground, Or Choose Expedited Shipping At Checkout
Ships From:
Illinois - Direct From Supplier

Temporarily Out Of Stock - Can Be Ordered From A Quote

We are currently awaiting a resupply shipment.
To purchase this backordered item now, please click “REQUEST A QUOTE” below and we will email a quote you can order from!

Century Motors 360 Permanent Split Capacitor Motor Features:
- 1/6Hp.
- 115V.
- 1075Rpm.
- Single Phase.
- 1 Speed.
- 2.6 Amps.
- 42 Nema Frame Size.
- Totally Enclosed Air Over.
- 1/2" x 3" Shaft.
- CW Shaft End Rotation.

Additional Features:
The Century Motors 360 is a permanent split capacitor (PSC) unit heater motor rated at 1/6 HP, operating at 1075 RPM with single speed, on 115V single-phase 60 Hz power drawing approximately 2.6 amps. It features a compact 42 frame, TEAO (totally enclosed air over) enclosure, sleeve bearings, double shaft or specific rotation (CWSE/CCWLE), and is designed for continuous duty in HVAC systems.
