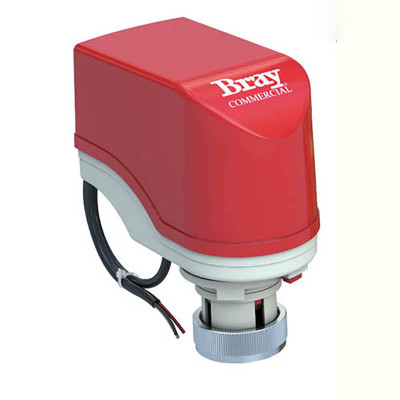

Bray PA24-27-FS Electric Actuator, 24V, Spring Return, 27 In-Lb

(No reviews yet) Write a Review

Bray Commercial

$261.18

Usually Ships In 3-5 Business Days

Shipping truck icon

Free ground shipping to the lower 48 states

Product ID:
Bray-PA24-27-FS
Weight:
6.00 (Lbs.)
Ships By:
Free Ground
Ships From:
Texas - Direct From Bray
Bray PA24-27-FS Actuator Features:
- 27 In-Lb.
- 24 VAC / VDC.
- Failsafe.
- On/Off and floating.
- Auto shutoff for end of travel.
- IP54 enclosure.
- Manual override.

The PA(M) series is a line of linear motor actuators to be used primarily on Bray PIC Valves utilized in Building Automation Systems.  These actuators are available with a multitude of options for On/Off/Floating or Modulating with or without electronic Failsafe.  These actuators automatically calibrate to the stroke of the valve as soon as power is applied and are field selectable direct or reverse acting.

A simple, reliable, versatile solution for your Bray Commercial Simple Set pressure Independent control valve!
  • Actuator Power:24V
  • Return Position:Spring Return
