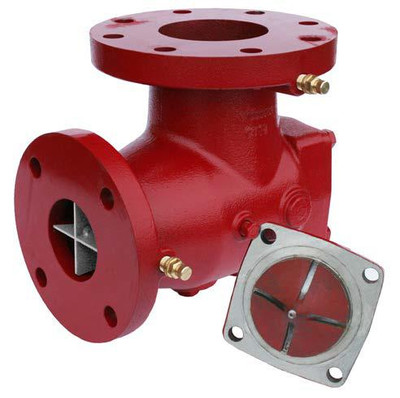

Bell & Gossett 115123 6 Inch x 4 Inch Suction Diffuser Plus, GE-3X

(No reviews yet) Write a Review

$2,336.85

Usually Ships In 5-6 Weeks

Free ground shipping to the lower 48 states

Product ID:
V01-Bell-&-Gossett-115123
Weight:
90.00 (Lbs.)
Ships By:
Truck, Curbside, Back Of Truck
Ships From:
Illinois - Direct From Supplier

Temporarily Out Of Stock - Can Be Ordered From A Quote

We are currently awaiting a resupply shipment.
To purchase this backordered item now, please click “REQUEST A QUOTE” below and we will email a quote you can order from!

Bell & Gossett 115123 Suction Diffuser Plus Features:
- 6 Inch System Side x 4 Inch Flange Pump Side.
- Pump Accessory.
- Cast Iron Body.
- Steel Inlet Vanes and Orifice Cylinder.
- Centrifugal Pump Suction Diffuser Plus.
- With 16 Mesh Bronze.
- Start-Up Strainer.
- Rated at 250 degrees F.
- Operating temperature.
- 175 PSI working pressure for Closed Systems.
- Model GE-3X.

Additional Features:
The Bell & Gossett 115123 is the GE-3X Suction Diffuser Plus, an angle-pattern straightening fitting with 6-inch flanged connections on the system side and 4-inch flanged connections on the pump side. This device is specifically designed for direct installation on the suction side of centrifugal pumps in hydronic heating, cooling, domestic water, and industrial fluid systems to eliminate recirculation zones.
