Barber Colman CP-8301-024 Electronic Actuator Drive, 24V, 20 Vdc

(No reviews yet) Write a Review

$746.78

Usually Ships In 5-6 Weeks

Free ground shipping to the lower 48 states

Product ID:
V01-Barber-Colman-CP-8301-024
Weight:
3.00 (Lbs.)
Ships By:
Free Ground, Or Choose Expedited Shipping At Checkout
Ships From:
Illinois - Direct From Supplier

Temporarily Out Of Stock - Can Be Ordered From A Quote

We are currently awaiting a resupply shipment.
To purchase this backordered item now, please click “REQUEST A QUOTE” below and we will email a quote you can order from!

Barber Colman CP-8301-024 Electronic Actuator Drive Features:
-  1 to 15 Vdc Input.
- 24V Power Requirement.
- 20 Vdc.
- 50mA Regulated and Filtered Power Supply.
- Adjustable from 2 to 12 Vdc Input.
- Factory Set at 6 Vdc.
- 3 Vdc Fixed Span for Full Actuator Stroke.

Additional Features:

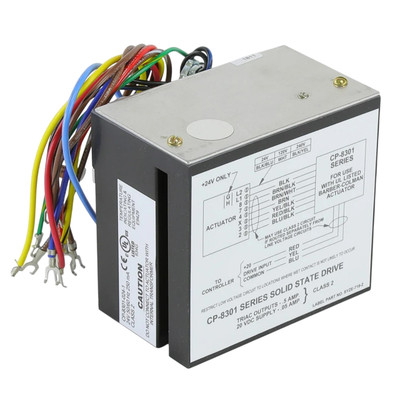

The Barber-Colman CP-8301-024 is an electronic actuator drive designed to process a variable 1-15 VDC input signal from a controller and provide proportional control to compatible electric gear train actuators. It operates on 24 VAC power, supplies a regulated and filtered 20 VDC, 50 mA output, and mounts directly onto actuators such as the MP-361, MP-371, MP-381, MP-382, MP-2113-500, and MP-9713 series.
