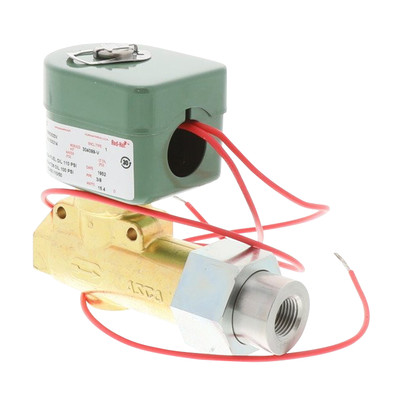

ASCO 8266D23V 3/8 Inch NPT Direct Acting Fuel Oil Shutoff Valve, 2-Way, Normally Closed, NEMA 1 Enclosure

(No reviews yet) Write a Review

$677.29

Usually Ships In 5-6 Weeks

Free ground shipping to the lower 48 states

Product ID:
V01-Asco-8266D23V
Weight:
2.63 (Lbs.)
Ships By:
Free Ground, Or Choose Expedited Shipping At Checkout
Ships From:
Illinois - Direct From Supplier

Temporarily Out Of Stock - Can Be Ordered From A Quote

We are currently awaiting a resupply shipment.
To purchase this backordered item now, please click “REQUEST A QUOTE” below and we will email a quote you can order from!

ASCO 8266D23V Fuel Oil Shutoff Valve Features:
- 3/8 Inch NPT.
- 2 Way.
- Normally Closed.
- 120Vac.
- 1.2 Cv.
- 0-110 PSI
- #2 Fuel Oil at 60 SSU.
- #4 Fuel Oil at 300 SSU, 0-100 PSI.
- #5 Fuel Oil at 5000 SSU.
- #6 Fuel Oil at 5000 SSU (Heated).
- Direct Acting Fuel Oil Shutoff Valve with Brass Body.
- Viton Seals and Disc.
- Nema 1 Enclosure.

Additional Features:a
The ASCO 8266D23V is a 2-way, normally closed direct-acting solenoid valve specifically engineered for the on-off control of fuel oils in commercial and industrial burners. Constructed with a brass body and 3/8 inch NPT connections. Designed for reliability without a minimum pressure requirement, it is ideally suited for safety shutoff and fuel management in demanding combustion systems.
