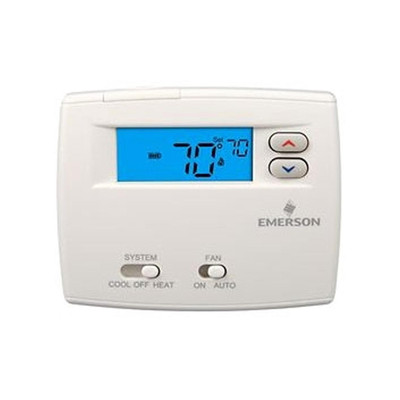

White-Rodgers 1F86-0244 24v/Millivolt 2 Wire Single Stage Non Programmable Digital Thermostat Hardwired

Description:

White Rodgers 1F86-0244 Single Stage Digital Thermostat Features:
- Thermostat.
- Type Non-Programmable, 1-Heat/1-Cool (1-Stage/Heat Pump).
- Cover Type Rectangular Horizontal.
- Voltage Rating 30 Volt AC (Battery), 24 Volt AC at 50/60 Hertz (Hardwire).
- Current Rating 0.05 to 1.5 Amp (Load Terminal).
- Temperature Rating 32 to 105 Deg F.
- Size 4.8 Inch Width x 1.5 Inch Depth x 3.8 Inch Height.
- Display Size 2 Square Inch.
- Display Color Blue.
- Set Point Temperature 45 to 90 Deg F.
- Display Temperature 32 to 99 Deg F.
- Terminal Designation R, C, Y, W, G, O/B.
- Humidity 90 Percent (Non-Condensing).
- Application Gas, Oil, Electric, Millivolt Compatible.
- Applicable Standard NEC Class II.
- UPC: 786710539046.
- Part Number: 1F86-0244.

Additional Features
- Easy Set Models Feature Simple Home Sleep Away Preset Buttons.
- Programmable, 5/1/1 Day, 24 Hour, 0 Day or Non-Programmable.
- Gas, Oil, Electric, Millivolt.
- Cool Savings Saves Energy During Peak Air Conditioner Demand Periods.
- Lighted Display for Easier Low Light Viewing.
- Dual Power - Hardwired and/or Battery Powered.
- Fits Horizontal Junction Box.
- Air Filter Change Indicator Option.
- Easy Push-Connect Color Coded Terminals.
