Wayne Combustion 23004-FH Ignition Transformer, 120V Primary, 10000V Secondary, 250 VA, Mid-Point Grounded

(No reviews yet) Write a Review

$585.17

4 In Stock, Orders Placed By 3pm EST Ship Same Day (Weekends And Holidays Excluded)

Free ground shipping to the lower 48 states

Product ID:
Wayne-Combustion-23004-FH
Weight:
9.00 (Lbs.)
Ships By:
Free Ground, Or Choose Expedited Shipping At Checkout
Ships From:
NorthStock In Massachusetts
Adding to cart… The item has been added
Wayne Combustion 23004-FH Transformer Features:
- Provides high-voltage ignition for HVAC burner systems.
- Interchangeable ignition transformer design.
- Primary rating of 120V, 60 Hz, 250 VA.
- Secondary output of 10,000V at 23 mA.
- Mid-point grounded secondary configuration.

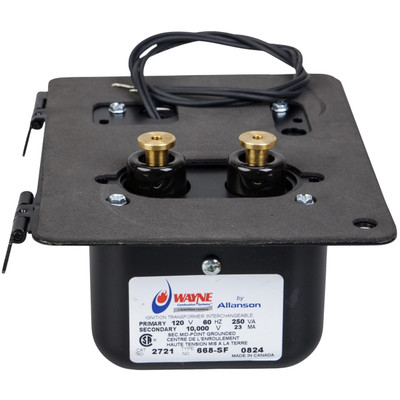

- Heavy-duty enclosed steel housing construction.
- Integrated mounting plate for secure installation.
- Dual high-voltage terminal posts for electrode connection.
- Catalog number 2721.
- Type number 668-SF.

Additional Features:
The Wayne Combustion 23004-FH Ignition Transformer is engineered to deliver reliable high-voltage ignition for HVAC burner systems, converting standard 120V, 60 Hz input power into a powerful 10,000-volt, 23 mA output to ensure consistent flame establishment in oil-fired heating equipment. Its most important physical feature is the heavy-duty, enclosed steel housing with integrated mounting plate and dual high-voltage terminal posts, designed for secure installation and dependable electrical insulation in demanding service environments. The clearly labeled, mid-point grounded secondary and interchangeable configuration (Cat. No. 2721, Type 668-SF) make it a practical replacement option for compatible HVAC units requiring a 250 VA ignition source. Once installed, the transformer steps up incoming line voltage to generate a strong, stable spark across the burner electrodes, supporting efficient ignition performance and dependable system startup in residential or light commercial heating applications.
