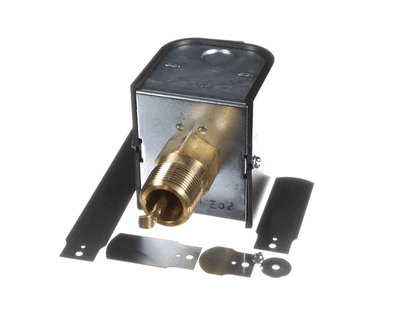

Trane SWT00135 Liquid Flow Switch, SPDT, 160 PSI, 300°F, NEMA 1, BSPT Thread
Write a Review
Trane
Trane SWT00135 Liquid Flow Switch, SPDT, 160 PSI, 300°F, NEMA 1, BSPT Thread
4 In Stock, Orders Placed By 3pm EST Ship Same Day (Weekends And Holidays Excluded)
Free ground shipping to the lower 48 states
- Product ID:
- V03-Trane-SWT00135
- Weight:
- 3.00 (Lbs.)
- Ships By:
- Free Ground, Or Choose Expedited Shipping At Checkout
- Ships From:
- Illinois - Direct From Supplier
The Trane SWT00135 is a general-purpose liquid flow switch designed to open or close a control circuit based on the presence of flow in a liquid line. This switch uses a single-pole, double-throw (SPDT) contact configuration, allowing it to be integrated into a range of control and safety interlock circuits.
The unit is rated for up to 160 PSI and 300°F, making it suitable for high-temperature and high-pressure liquid systems. It carries a 125 VA pilot duty rating at 120–240 VAC, with full-load and locked-rotor current ratings listed for both 120V and 240V service. The switch includes a BSPT threaded terminal connection and meets CE compliance standards.
This is a genuine Trane OEM component and is intended for replacement use to maintain proper performance and compatibility in systems originally designed for this model.
Specifications
| Brand | Trane |
| Type | General Purpose, Liquid Flow |
| Contact Configuration | SPDT |
| Number of Poles | 1 |
| Pressure Rating | 160 PSI |
| Temperature Rating | 300°F |
| Power Rating | 125 VA Pilot Duty at 120–240V AC; 7.4 FLA / 44.4 LRA at 120V AC; 3.7 FLA / 22.2 LRA at 240V AC; 0.3 A at 120V DC; 0.15 A at 240V DC |
| Terminal Type | BSPT Thread |
| Standards | CE |
