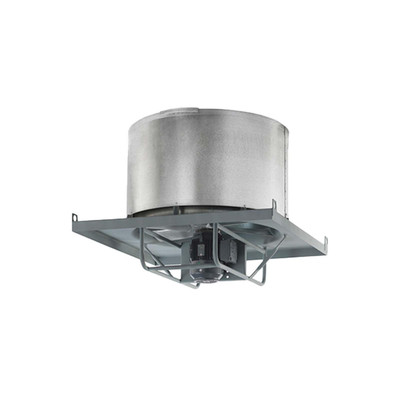

TPI UEB42-1-1-2 Belt Drive Roof Ventilator, 1.5 HP, Enclosed Motor, 17420 CFM, 115/230V/1Ph

(No reviews yet) Write a Review

$10,252.30

Usually Ships In 2-3 Weeks

Free ground shipping to the lower 48 states

Product ID:
TPI-UEB42-1-1-2-1
Weight:
470.00 (Lbs.)
Ships By:
Truck, Curbside, Back Of Truck
Ships From:
Multiple Warehouses - Direct From TPI
Choose Options

choose options:

Adding to cart… The item has been added
TPI UEB42-1-1-2-1 Belt Drive Roof Ventilator Features:

- Not cancelable, not returnable. Before purchasing please double check to confirm this item is correct for your application.

- 1.5 HP.
- 17420 CFM at 0 Inch static pressure.
- 115/230V/1Ph.
- Totally enclosed motor.
- Standard blades are heavy gauge steel.
- 1-Phase motors are field convertible 115V/230V.
- Motors are set to lower voltage at factory unless a request is made at time of order to set them to the higher voltage.
- Wind band is 18 gauge galvanized steel.
- Galvanized steel butterfly damper with rubber stops and seals.
- Size of roof opening to be 6” larger than fan size (Wind Band O.D.) dimension.
- Available options include: Protective coating, prefabricated curbs, disconnect switch.
- 1 year limited warranty.
- California residents see Prop 65 Warnings.

Specifications
Catalog Number: 08175602
Model Number: UEB42-1 1/2/TEC
Blade Size: 42
Blade Material: Heavy Guage Steel: Stnd.
Fan Style Type: Belt Drive
Phase: 1
Voltage: 115/230
Motor Rating HP: 1.5
RPM: 550
Motor Volt: 115/230
CFM Static 0": 17420
CFM Static 1/2": 7289
CFM Static 1/4": 13117
dB @ 10': 71
Weight (lbs): 470
