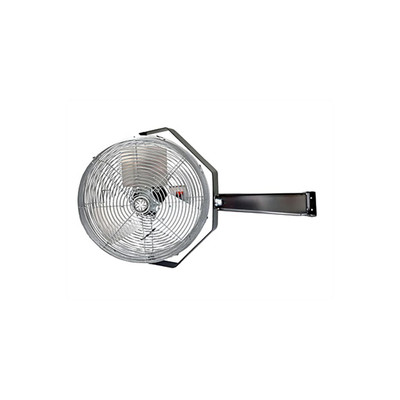

TPI U-12-TE-W 12 Inch Industrial Mounted Workstation Fan With Mounting Arm, 1/12 HP, 3 Speed, 900 CFM, 120V/1Ph
TPI
$210.09
Usually Ships In 2-3 Weeks
Free ground shipping to the lower 48 states
- Product ID:
- TPI-U-12-TE-W
- UPC:
- 686334821612
- Weight:
- 20.00 (Lbs.)
- Ships By:
- Free Ground
- Ships From:
- Tennessee - Factory Direct
Description:
TPI U-12-TE-W 12 Inch Industrial Mounted Workstation Fan With Mounting Arm Features:
- Pull chain switch.
- Head rotates 360° vertically and horizontally.
- Coated steel guards.
- SJT type 3 conductor, 10 Ft. long cord.
- Steel hub/spider aluminum paddle blades.
- Head rotates 360° vertically and horizontally.
- Coated steel guards.
- SJT type 3 conductor, 10 Ft. long cord.
- Steel hub/spider aluminum paddle blades.
- Mount with one bolt or lag screw to walls, ceilings, work benches, machines or any surface.
- Meets OSHA standards.
- 1 Year limited warranty.
- CFM measured 2 feet form face of fan.
- Meets OSHA standards.
- 1 Year limited warranty.
- CFM measured 2 feet form face of fan.
- Imported to TPI specifications.
- Can be used in outdoor semi-protected applications.
- California residents see Prop 65 Warnings.
- Can be used in outdoor semi-protected applications.
- California residents see Prop 65 Warnings.
SPECIFICATIONS
Catalog Number: 08216102
Model Number: U-12-TE-W
Agency Rating: ETL-CUS
Fan Style Type: Direct Drive
Blade Size: 12
Blade Material: Aluminum
Switch: Pull Chain
Speeds: 3
CFM High: 900
CFM Med: 800
CFM Low: 700
Velocity Profile CFM / Area Sq. Ft: 1400 / 50
Motor Rating HP: 1/12
Motor Volt: 120
RPM High: 1590
RPM Medium: 1380
RPM Low: 1080
Voltage: 120
Amp: 1.1
Phase: 1
Cord Type: SJT
Cord Length: 10 Ft.
Connection Type: 3 Conductor
Color: Silver
Weight (lbs): 25
Model Number: U-12-TE-W
Agency Rating: ETL-CUS
Fan Style Type: Direct Drive
Blade Size: 12
Blade Material: Aluminum
Switch: Pull Chain
Speeds: 3
CFM High: 900
CFM Med: 800
CFM Low: 700
Velocity Profile CFM / Area Sq. Ft: 1400 / 50
Motor Rating HP: 1/12
Motor Volt: 120
RPM High: 1590
RPM Medium: 1380
RPM Low: 1080
Voltage: 120
Amp: 1.1
Phase: 1
Cord Type: SJT
Cord Length: 10 Ft.
Connection Type: 3 Conductor
Color: Silver
Weight (lbs): 25
MOTOR SPECIFICATIONS
- 3-Speed
- 1-Phase, 120V
- Sleeve bearing
- Permanently lubricated
- Totally enclosed
- 5/16 inch Shaft 12 inch fan only, otherwise 1/2 inch shaft
- Frame size: 42
- 1-Phase, 120V
- Sleeve bearing
- Permanently lubricated
- Totally enclosed
- 5/16 inch Shaft 12 inch fan only, otherwise 1/2 inch shaft
- Frame size: 42
