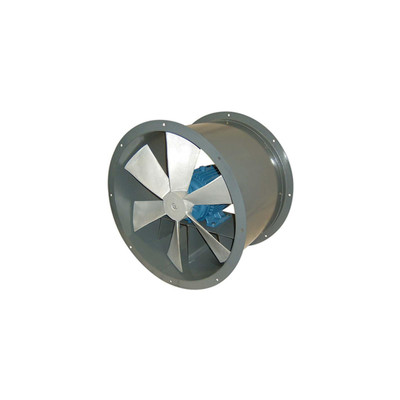

TPI TXD42-2-3-EXP Direct Drive Tubeaxial Duct Fan, 2 HP, Explosion Proof Motor, 17964 CFM, 230/460V/3Ph

(No reviews yet) Write a Review

$7,545.08

Usually Ships In 2-3 Weeks

Free ground shipping to the lower 48 states

Product ID:
TPI-TXD42-2-3-EXP
Weight:
270.00 (Lbs.)
Ships By:
Truck, Curbside, Back Of Truck
Ships From:
Multiple Warehouses - Direct From TPI
Choose Options

choose options:

Adding to cart… The item has been added
TPI TXD42-2-3-EXP Direct Drive Tubeaxial Duct Fan Features:

- Not cancelable, not returnable. Before purchasing please double check to confirm this item is correct for your application.

- 2 HP.
- Explosion proof motor.
- 17964 CFM at 0 Inch static pressure.
- 230/460V/3Ph.
- Motors are set to lower voltage at the factory unless a request is made at time of order to set them to the higher voltage.
- Explosion proof motors are Class 1, Div 1, Group D and Class 2, Div 1, Groups F & G.
- 14 gauge steel drum including mounting flanges.
- Fan can be mounted to operate in any position.
- Rugged cast aluminum blade, non-sparking.
- 1 year limited warranty.
- California residents see Prop 65 Warnings.

Specifications
Catalog Number: 08184402
Model Number: TXD42-2-3/EXP
Blade Size: 42
Blade Material: Cast Aluminum
Fan Style Type: Direct Drive
Phase: 3
Voltage: 230/460
Motor HP: 2
RPM: 1140
Motor Volt: 230/460
CFM Static 0”: 17964
CFM Static 1/2”: 12351
CFM Static 1/4”: 15326
CFM Static 3/4”: 7600
dB @ 10': 87
Depth: 18
Weight (lbs): 260
