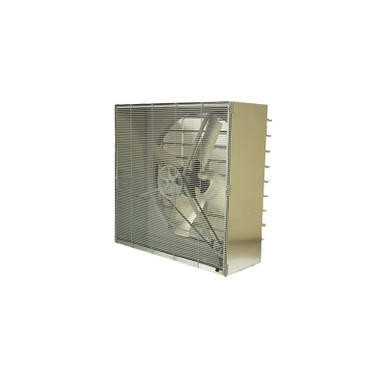

TPI CBT-48B 48 Inch Cabinet Belt Drive Exhaust Fan With Shutters, 1 HP, 23500 CFM, 115V/1Ph

(No reviews yet) Write a Review
$3,190.00

Usually Ships In 2-3 Weeks

Free ground shipping to the lower 48 states

Product ID:
TPI-CBT-48B
UPC:
686334868518
Weight:
200.00 (Lbs.)
Ships By:
Truck, Curbside, Back Of Truck
Ships From:
Tennessee - Factory Direct

Frequently Bought Together

Please choose options for all selected products

Description:

TPI CBT-48B Cabinet Exhaust Fan Features:
- 120V 1-Phase, ball bearing, permanently lubricated, drip proof motor - UL listed.
- Permanently lubricated bearings on blade drive shaft.
- Aluminum blade.
- Aluminum shutter.
- 20 gauge powder coated venturi.
- 18 gauge galvanized steel housing.
- 1725 RPM motor.
- Motor frame size 56 / Shaft: 5/8 inch.
- Ships fully assembled.
- Meets OSHA Standards.
- 1 year warranty.
- Made in U.S.A..
- California residents see Prop 65 Warnings.

Specifications
Catalog Number: 08685102
Model Number: CBT-48B
Motor Rating HP: 1
Amp: 15
Voltage: 120
Phase: 1
CFM: 23500
Blade Material: Aluminum
Blade Size: 48
Fan Style Type: Belt Drive
Motor RPM: 1725
Motor Volt: 120
Width: 54.5
Height: 54.5
Depth: 21.5
Weight (lbs): 200
