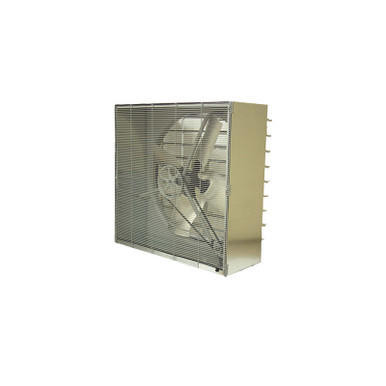

TPI CBT-36B 36 Inch Cabinet Belt Drive Exhaust Fan With Shutters, 1/2 HP, 14000 CFM, 115V/1Ph

TPI

(No reviews yet) Write a Review

$2,114.08

Usually Ships In 2-3 Weeks

Free ground shipping to the lower 48 states

Questions? Contact us

Product ID:: TPI-CBT-36B
UPC:: 686334868419
Weight:: 135.00 (Lbs.)
Ships By:: Truck, Curbside, Back Of Truck
Ships From:: Tennessee - Factory Direct

Frequently Bought Together

Total Price:
Add to Cart

Please choose options for all selected products

This Item: TPI CBT-36B 36 Inch Cabinet Belt Drive Exhaust Fan With Shutters, 1/2 HP, 14000 CFM, 115V/1Ph

MSRP:

Was:

$2,114.08

(You save )

Usually Ships In 2-3 Weeks

Description:

TPI CBT-36B Cabinet Exhaust Fan Features:
- 120V 1-Phase, ball bearing, permanently lubricated, drip proof motor - UL listed.
- Permanently lubricated bearings on blade drive shaft.
- Aluminum blade.
- Aluminum shutter.
- 20 gauge powder coated venturi.
- 18 gauge galvanized steel housing.
- 1725 RPM motor.
- Motor frame size 56 / Shaft: 5/8 inch.
- Ships fully assembled.
- Meets OSHA Standards.
- 1 year warranty.
- Made in U.S.A..
- California residents see Prop 65 Warnings.

Specifications
Catalog Number: 08684102
Model Number: CBT-36B
Motor Rating HP: 1/2
Amp: 8.0
Voltage: 120
Phase: 1
CFM: 14000
Blade Material: Aluminum
Blade Size: 36
Fan Style Type: Belt Drive
Motor RPM: 1725
Motor Volt: 120
Width: 40.25
Height: 40.25
Depth: 18.5
Weight (lbs): 135
