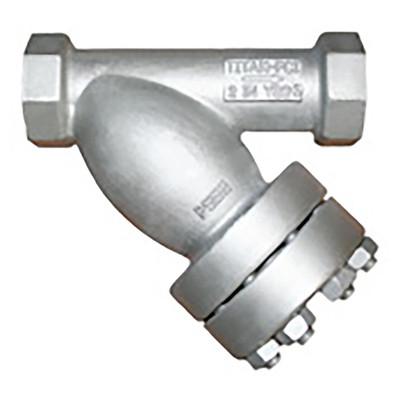

Titan Flow Control YS86S0200 2 Inch Y Strainer, Stainless Steel, ANSI Class 2500, Socket Weld Ends

(No reviews yet) Write a Review

Usually Ships In 1-2 Weeks

Free ground shipping to the lower 48 states

Product ID:
75.00 (Lbs.)
Ships By:
Truck, Curbside, Back Of Truck
Ships From:
North Carolina - Direct From Titan

choose options:

Frequently Bought Together

Please choose options for all selected products


Titan Flow Control YS86S0200 Features:
- 2 Inch Y Strainer.
- Stainless Steel A351 Gr. CF8M.
- ANSI Class 2500.
- Socket Weld Ends.
- Standard 1/16 Perforation screen.
- WOG Rating 6170 PSI at 100F.
Additional Features
Rugged High Quality Design:
Titan unit YS86 is ideal for petrochemical and other demanding industrial applications that have higher pressure and temperature requirements.
Large Straining Capacity:
With its large body and sizable straining element, provides excellent open area ratios that are typically two and a half times larger than the corresponding pipeline.
Precision Machined Seats:
Precision machined screen seats in both the body and cap help to ensure accurate positioning of the screen during reassembly after cleaning. The machined body seats enable finer filtration by preventing debris bypass.
Encapsulated CG Style Gasket:
The CG Style cover gasket provides additional radial strength to prevent gasket blowout. It also acts as a compression stop.
Self-Cleaning Capability:
This unit can be fitted with a blow-down valve which facilitates cleaning of the straining element. Please contact factory for more information.
