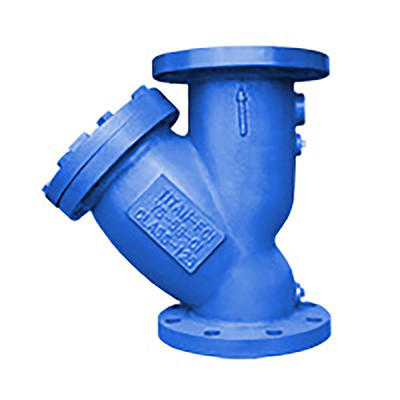

Titan Flow Control YS58I0300 3 Inch Y Strainer, Cast Iron, ANSI 125, Flanged Ends, Bolted Cover, Epoxy Painted, Plugged Blow-Off

(No reviews yet) Write a Review

$264.44

Usually Ships In 1-2 Weeks

Free ground shipping to the lower 48 states

Product ID:
Titan-Flow-Control-YS58I0300
Weight:
34.00 (Lbs.)
Ships By:
Free Ground
Ships From:
North Carolina - Direct From Titan
Adding to cart… The item has been added
Titan Flow Control YS58I0300 Features:
- 3 Inch Y Strainer.
- Cast Iron A126 Gr. B.
- ANSI Class 125.
- Flanged Ends.
- Bolted Cover.
- Epoxy Painted.
- Plugged Blow-Off.
- Standard 1/16 Perforation screen.
- WOG Rating 200 PSI at 150F.

Additional Features

New design with gauge taps:
Titan's YS58 has convenient gauge taps furnished with a plug on both the inlet and outlet sides of the sizes 2 Inch through 20 Inch. These taps allow for easy installation of pressure gauges to monitor differential pressure and determine when screen cleaning is necessary.

Large straining capacity: With its large body and sizeable straining element, the YS58 provides excellent open area ratios that are typically two-and-a-half times larger than the corresponding pipeline.

Precision machined seats: Precision machined screen seats in both the body and cap help to ensure accurate positioning of the screen during reassembly after cleaning, also the machined body seats enable finer filtration by preventing debris bypass.

Self-cleaning capability: With a tapped NPT blow-off connection, this unit can be fitted with a blow-down valve which facilitates cleaning of the straining element.

Epoxy painted: All units are epoxy painted to help resist rust and corrosion.
