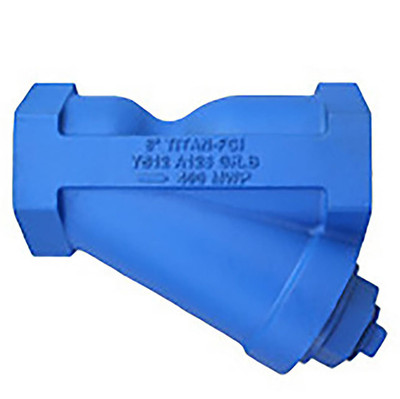

Titan Flow Control YS12I0125 1 1/4 Inch Y Strainer, Cast Iron, ANSI 250, Threaded Ends, Epoxy Painted, Gasketed Caps, Plugged Blow-Off, Min Order Qty 2

(No reviews yet) Write a Review

$59.21

Usually Ships In 1-2 Weeks

Free ground shipping to the lower 48 states

Product ID:
Titan-Flow-Control-YS12I00125
Weight:
6.00 (Lbs.)
Ships By:
Free Ground
Ships From:
North Carolina - Direct From Titan
Adding to cart… The item has been added
Titan Flow Control YS12I0100 Features:
- Min Order Qty 10.
- 1 1/4 Inch Y Strainer.
- Cast Iron A126 Gr. B.
- ANSI Class 250.
- Threaded Ends.
- Epoxy Painted.
- Gasketed Caps.
- Plugged Blow-Off.
- Standard 20 mesh screen.
- WOG Rating 400 PSI at 150F.

Additional Features

Large straining capacity: With its large body and sizeable straining element, the YS12 provides excellent open area ratios that are typically two-and-a-half times larger than the corresponding pipeline.

Precision machined seats: Precision machined screen seats in both the body and cap help to ensure accurate positioning of the screen during reassembly after cleaning, also the machined body seats enable finer filtration by preventing debris bypass.

Self-cleaning capability: With a tapped NPT blow-off connection, this unit can be fitted with a blow-down valve which facilitates cleaning of the straining element.

Epoxy painted: All units are epoxy painted to help resist rust and corrosion.

Threaded cap: Titan's YS12 has straight threads to permit easy cap removal for cleaning and proper alignment when reassembling strainer.
