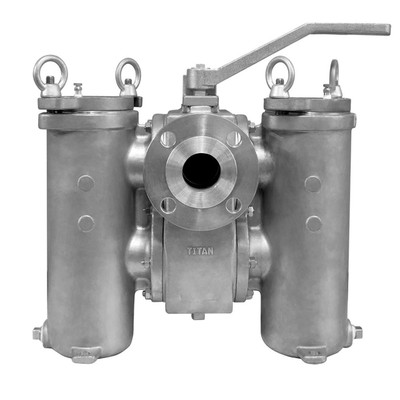

Titan Flow Control DS696S0600 6 Inch Duplex Strainer, Stainless Steel, ASME Class 150, Flanged Ends

(No reviews yet) Write a Review
$35,052.62

Usually Ships In 1-2 Weeks

Free ground shipping to the lower 48 states

Product ID:
Titan-Flow-Control-DS696S0600
Weight:
974.00 (Lbs.)
Ships By:
Truck, Curbside, Back Of Truck
Ships From:
North Carolina - Direct From Titan

Frequently Bought Together

Please choose options for all selected products

Description:

Titan Flow Control DS696S0600 Features:
- 6 Inch Duplex Strainer.
- Stainless Steel ASTM A351 Gr. CF8M.
- ANSI Class 150.
- Flanged Ends.
- Standard 1/16 Perforation.
- WOG Rating 285 PSI at 100.

Additional Features

Easy to Operate:
Titan FCI's Duplex Strainer features a low torque, easy to operate handle that does not require a gearbox.

Reduced In-Line Maintenance:
The dual/quad ball design isolates each chamber and keeps the servicing chamber dry during cleaning, an no special tools are required to access and remove the straining element from the chamber.

Endless Screen Options:
This strainer can be fitted with virtually any configuration of perforation or mesh lined straining elements. Straining elements can also be constructed from special materials such as Alloy 20.
