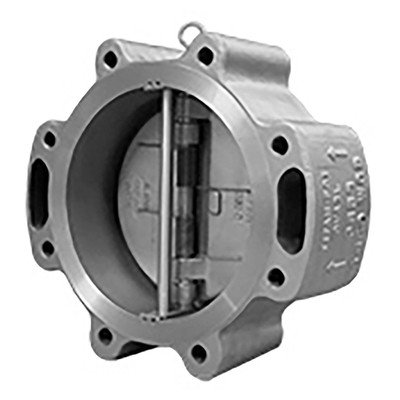

Titan Flow Control CV42LCSV1600 16 Inch Check Valve, Lug Type, Carbon Steel Body, Viton Seat

(No reviews yet) Write a Review
$9,591.00

Usually Ships In 1-2 Weeks

Free ground shipping to the lower 48 states

Product ID:
Titan-Flow-Control-CV42LCSV1600
Weight:
242.00 (Lbs.)
Ships By:
Truck, Curbside, Back Of Truck
Ships From:
North Carolina - Direct From Titan

Frequently Bought Together

Please choose options for all selected products

Description:

Titan Flow Control CV42LCSV1600 Features:
- Lug Type.
- 16 Inch Check Valve.
- Body: Carbon Steel ASTM A216 Gr. WCB.
- Disc Material: Stainless Steel.
- Disc Seat: Viton.

Additional Features

Cost Efficient Design:
Low weight and short laying length produce savings in initial cost. Space requirements, and installation when compared to full-body, swing-type check valve.

Minimal Head Loss:
Contour of body provides a short and straight flow path that generates very little turbulence.  Additionally, the spring-loaded disc is designed with very low cracking pressure which reduces the amont of energy requred to open the valve.

Quick Closure to Reduce Water Hammer:
Shut-off is achieved via the fully automatic, spring-assisted discs that close near zero flow velocity. The lightweight, split disc design creates a positive shutoff prior to flow reversal and helps to keep slamming and surges to a minimum.

Designed for Long Service Life:
The spring and discs are disigned to allow the discs to lift linearly before pivoting to avoid the disc heal from scrubbing the sealing surface. Also, discs are equipped with cast-in shock bumpers that help to reduce wear and tear on internal components.

Fugitive Emisson Design:
Titan's innovative retainer design eliminates potential leak paths to the environment so there are no body emmisions.
