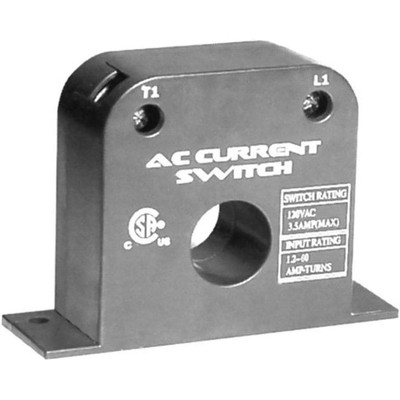

Soler And Palau CS-325 High Current Switch

(No reviews yet) Write a Review

$186.30

Usually Ships In 3-5 Business Days

Free ground shipping to the lower 48 states

Product ID:
Soler-And-Palau-CS-325
UPC:
812482010244
Weight:
1.00 (Lbs.)
Ships By:
Free Ground
Ships From:
Florida - Direct From Soler And Palau
Adding to cart… The item has been added
Soler And Palau CS-325 High Current Switch Features:
- Operating Temperature: 23-104 Deg.
- Action Current Range: 1.20 - 60.
- Amp-turns: 2.75 Inch x 3.5 Inch x 1.1 Inch.
- AC Conductor Hole: 0.75 Inch Diameter.
- Trip Set-Point Factory preset at approximately 1.2 Amps.
- Operating Humidity: 0 - 99 percent.
- Material Self-extinguising ABS.
- Switch Rating: 120 Vac at 3.5 Amps.
- Max Mounting Holes 2 x 0.19 Inch holes spaced 3 Inch on base.
- Output Type Triac with volts surge protected design.
- Leakage Current: greater than 1mA.
- Manufacturing Process ISO 9001 Certified.
