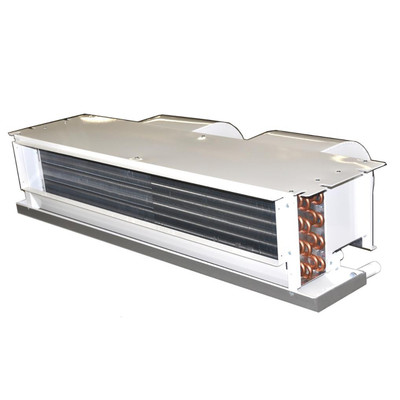

Multiaqua MHNCCW-08-01 Ceiling Concealed Fan Coil, 2 Ton, 4 Pipe, Chilled/Hot Water, 208/230V/1Ph

(No reviews yet) Write a Review

Quote Required

Quoted Item, Click The Request A Quote Button Below

Free ground shipping to the lower 48 states

Product ID:
Multiaqua-MHNCCW-08-01
Weight:
73.00 (Lbs.)
Ships By:
Truck, Curbside, Back Of Truck
Ships From:
South Carolina - Direct From Multiaqua
Choose Options

choose options:

Multiaqua MMHNCCW-08-01 Ceiling Concealed Fan Coil Features:
- Product Type: Ceiling Concealed Chilled/Hot Water Fan Coil.
- Nominal Capacity: 24,000 BTUH.
- System Type: 4-Pipe Heat/Cool.
- Airflow: 800 CFM.
- Fan Motor: 3-Speed Direct Drive PSC Motor.
- Cooling Coil: 4 Row, 14 FPI.
- Heating Coil: 2 Row, 14 FPI.
- Copper Tube Diameter: 3/8".
- Water Connections: 5/8" Inlet x 5/8" Outlet.
- Drain Connection: 3/4".
- Heavy Gauge Galvanized Steel Cabinet.

Additional Information:
The Multiaqua MHNCCW-08-01 is a ceiling concealed 4-pipe fan coil designed for hydronic HVAC systems requiring independent chilled water cooling and hot water heating. By utilizing dedicated cooling and heating coils, the unit allows buildings served by central chilled and hot water loops to provide heating and cooling without seasonal changeover. The fan coil features a heavy-gauge galvanized steel cabinet with internal insulation for quiet operation, forward-curved dynamically balanced blower wheels, and a three-speed PSC direct-drive motor. The hydronic coils are constructed from 3/8-inch copper tubing mechanically bonded to aluminum fins and include manual air bleed and drain ports. Field-convertible water connections, insulated drain pans, and factory-installed controls simplify installation while providing dependable year-round comfort in commercial, hospitality, healthcare, multifamily, and institutional applications.
