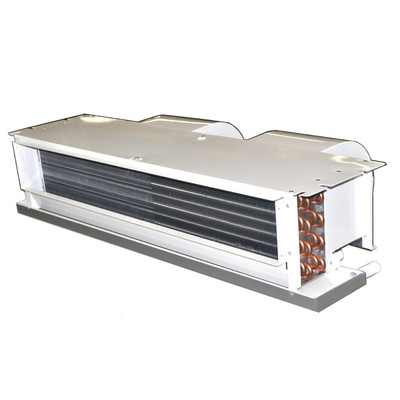

Multiaqua MHNCCW-04-03 Ceiling Concealed Fan Coil, 1 Ton, 4 Pipe, Chilled/Hot Water, 115V/1Ph

(No reviews yet) Write a Review

Quote Required

Quoted Item, Click The Request A Quote Button Below

Free ground shipping to the lower 48 states

Product ID:
Multiaqua-MHNCCW-04-03
Weight:
66.00 (Lbs.)
Ships By:
Truck, Curbside, Back Of Truck
Ships From:
South Carolina - Direct From Multiaqua
Choose Options

choose options:

Multiaqua MHNCCW-04-03 Ceiling Concealed Fan Coil Features:
- Product Type: Ceiling Concealed Chilled/Hot Water Fan Coil
- Nominal Capacity: 12,000 BTUH
- System Type: 4-Pipe Heat/Cool
- Airflow: 400 CFM
- Fan Motor: 3-Speed Direct Drive PSC Motor
- Motor HP: 1/15 HP
- Cooling Coil: 2 Row, 14 FPI
- Heating Coil: 2 Row, 14 FPI
- Copper Tube Diameter: 3/8"
- Water Connections: 5/8" Inlet x 5/8" Outlet
- Drain Connection: 3/4"
- Heavy Gauge Galvanized Steel Cabinet

Additional Information:
The Multiaqua MHNCCW-04-03 is a ceiling concealed 4-pipe fan coil designed for hydronic HVAC systems that require independent chilled water cooling and hot water heating. Separate cooling and heating coils allow year-round comfort without seasonal changeover. The unit features a heavy-gauge galvanized steel cabinet with internal insulation, dynamically balanced forward-curved blower wheels, and a three-speed PSC direct-drive motor for quiet operation. Hydronic coils utilize 3/8-inch copper tubing mechanically bonded to aluminum fins and include manual air bleed and drain ports for simplified maintenance. Field-convertible piping connections, insulated drain pans, and factory-installed controls make this fan coil ideal for multifamily, hospitality, healthcare, and commercial applications.
