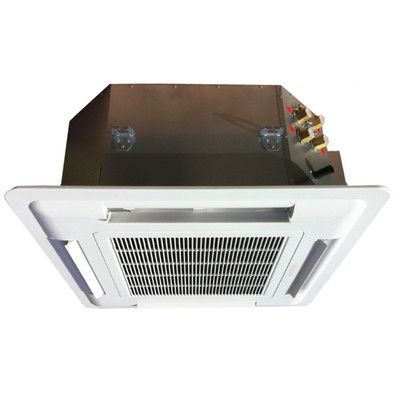

Multiaqua MHCFC4W-08-1 4-Way Ceiling Cassette Fan Coil, 2 Ton, 4 Pipe, Chilled/Hot Water, 208/230V/1Ph

(No reviews yet) Write a Review

Quote Required

Quoted Item, Click The Request A Quote Button Below

Free ground shipping to the lower 48 states

Product ID:
Multiaqua-MHCFC4W-08-1
Weight:
71.10 (Lbs.)
Ships By:
Truck, Curbside, Back Of Truck
Ships From:
South Carolina - Direct From Multiaqua
Choose Options

choose options:

Multiaqua MHCFC4W-08-1 Ceiling Cassette Fan Coil Features:
- Product Type: Chilled/Hot Water Cassette Fan Coil.
- Nominal Capacity: 24,000 BTUH.
- System Type: 4-Pipe Heat/Cool.
- Airflow: 579 CFM.
- Fan Motor: 3-Speed Direct Drive PSC Motor.
- Cooling Coil: 3 Row, 14 FPI.
- Heating Coil: 1 Row, 14 FPI.
- Water Connections: 3/4" FPT.
- Drain Connection: 1" Barb.
- Fresh Air Capability: Up to 50% Filtered Fresh Air.

Additional Information:
The Multiaqua MHCFC4W-08-1 is a 4-pipe chilled and hot water ceiling cassette fan coil designed for residential and light commercial hydronic HVAC applications. The unit features a galvanized steel cabinet with high-impact polymer fascia, separate heating and cooling coils for year-round comfort, and a three-speed PSC fan motor with a dynamically balanced radial blower wheel. The ceiling cassette design provides four-way air distribution through manually adjustable discharge louvers for even room coverage. Factory assembled and tested, the unit includes a washable panel filter and can accommodate up to 50% externally supplied filtered fresh air to enhance indoor air quality.
