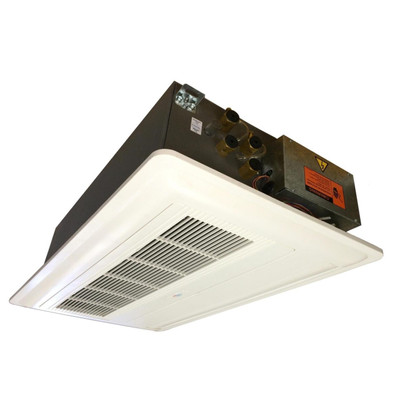

Multiaqua MH1WC4W-06-1-B 1-Way Ceiling Cassette Fan Coil, 1.5 Ton, 4 Pipe, Chilled/Hot Water, 208/230V/1Ph

(No reviews yet) Write a Review

Quote Required

Quoted Item, Click The Request A Quote Button Below

Free ground shipping to the lower 48 states

Product ID:
Multiaqua-MH1WC4W-06-1-B
Weight:
88.16 (Lbs.)
Ships By:
Truck, Curbside, Back Of Truck
Ships From:
South Carolina - Direct From Multiaqua
Choose Options

choose options:

Multiaqua MH1WC4W-06-1-B Ceiling Cassette Fan Coil Features:
- Product Type: Chilled/Hot Water Ceiling Cassette Fan Coil.
- Nominal Capacity: 18,000 BTUH.
- System Type: 4-Pipe Heat/Cool.
- Airflow: 545 CFM.
- Fan Motor: 3-Speed Direct Drive PSC Motor.
- Cooling Coil: 3 Row, 14 FPI.
- Heating Coil: 1 Row, 14 FPI.
- Water Connections: 3/4" FPT.
- Drain Connection: 3/4" Hose Connection.
- Internal Condensate Lift Pump and Float Switch.
- Fresh Air Capability: Up to 10% Filtered Fresh Air.

Additional Information:
The Multiaqua MH1WC4W-06-1-B is a 4-pipe chilled and hot water ceiling cassette fan coil designed for residential and light commercial hydronic HVAC applications. The unit features a galvanized steel cabinet with high-impact polymer fascia, separate heating and cooling coils for year-round comfort, and a three-speed PSC fan motor with a dynamically balanced radial blower wheel. The 1-way cassette design incorporates an automatic discharge air louver for controlled air distribution and includes an internal condensate lift pump with float switch for condensate management. Factory assembled and tested, the unit includes dual washable panel filters and can accommodate up to 10% externally supplied filtered fresh air for improved indoor air quality.
