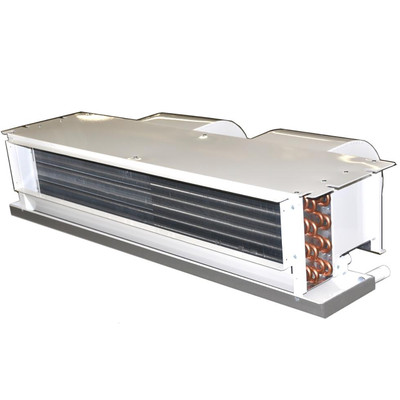

Multiaqua MCCW-16-H-1 Ceiling Concealed Fan Coil, 4 Ton, 2 Pipe, Chilled/Hot Water, 208/230V/1Ph

(No reviews yet) Write a Review

Quote Required

Quoted Item, Click The Request A Quote Button Below

Free ground shipping to the lower 48 states

Product ID:
Multiaqua-MCCW-16-H-1
Weight:
69.00 (Lbs.)
Ships By:
Truck, Curbside, Back Of Truck
Ships From:
South Carolina - Direct From Multiaqua
Choose Options

choose options:

Multiaqua MCCW-16-H-1 Ceiling Concealed Fan Coil Features:
- Product Type: Ceiling Concealed Chilled/Hot Water Fan Coil.
- Nominal Capacity: 48,000 BTUH.
- System Type: 2-Pipe Heat/Cool.
- Airflow: 1,435 CFM.
- Fan Motor: 3-Speed Direct Drive PSC Motor.
- Coil Construction: 3 Row, 14 FPI.
- Copper Tube Diameter: 3/8".
- Water Connections: 3/4" Inlet x 3/4" Outlet.
- Drain Connection: 1/2".
- Heavy Gauge Galvanized Steel Cabinet.

Additional Information:
The Multiaqua MCCW-16-H-1 is a ceiling concealed chilled and hot water fan coil designed for commercial and residential hydronic HVAC applications requiring concealed ducted air distribution. The unit features a heavy-gauge galvanized steel cabinet with baked polyester powder coating and internal insulation for quiet operation. A three-speed, direct-drive PSC motor powers dynamically balanced forward-curved blower wheels to deliver high airflow performance while maintaining low sound levels. The hydronic coil utilizes 3/8-inch copper tubing mechanically bonded to aluminum fins and includes manual air bleed and drain ports for simplified maintenance. Factory assembled and tested, the unit incorporates insulated drain pans with primary and secondary drain connections, field-installed thermostat compatibility, and durable corrosion-resistant construction for long service life
