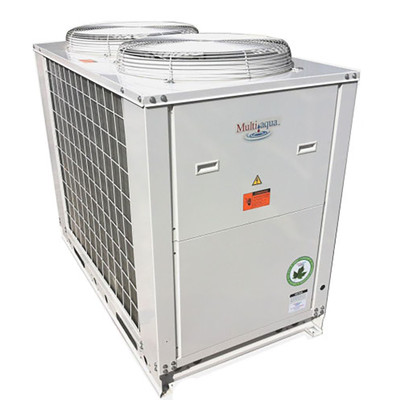

Multiaqua MAC-120HE-02-32-L 10 Ton Air Cooled Chiller with Low Ambient Kit, R32, 208/230V/3Ph

(No reviews yet) Write a Review

Quote Required

Quoted Item, Click The Request A Quote Button Below

Free ground shipping to the lower 48 states

Product ID:
Multiaqua-MAC-120HE-02-32-L
Weight:
1,100.00 (Lbs.)
Ships By:
Truck, Curbside, Back Of Truck
Ships From:
South Carolina - Direct From Multiaqua
Choose Options

choose options:

Multiaqua MAC-120HE-02-32-L Chiller Features:
- Product Type: Air Cooled Chiller.
- Compressor Type: Dual Copeland Scroll Compressors.
- Refrigerant: R32.
- Heat Exchanger: Brazed Plate.
- Maximum Flow Rate: 28.8 GPM.
- Minimum Flow Rate: 18 GPM.
- Minimum System Solution Content: 50 Gallons.
- Expansion Tank Size: 3% of Total System Volume.
- Water Connections: 1-3/8" OD Supply & Return.
- Internal Pressure Drop: 18 ft. of Head.

Additional Information:
The Multiaqua MAC-120HE-02-32-L is a factory-assembled and tested air-cooled liquid chiller designed for residential and light commercial hydronic cooling applications. The unit features dual fully hermetic Copeland scroll compressors, high-volume condenser fans, and a brazed plate heat exchanger with ANSI Type 316 stainless steel construction. The factory-installed Low Ambient Kit allows operation in outdoor temperatures down to -20°F when used with a field-supplied crankcase heater. The air-cooled condenser utilizes rifled copper tubing mechanically bonded to aluminum fins for efficient heat transfer. The chiller is factory wired, tested, and charged with R32 refrigerant prior to shipment and incorporates dual refrigerant circuits for dependable operation.
