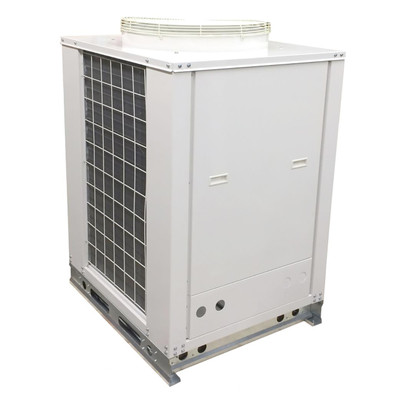

Multiaqua MAC-060HE-01-32 5 Ton Air Cooled Chiller, R32, 208/230V/1Ph

(No reviews yet) Write a Review

Quote Required

Quoted Item, Click The Request A Quote Button Below

Free ground shipping to the lower 48 states

Product ID:
Multiaqua-MAC-060HE-01-32
Weight:
805.00 (Lbs.)
Ships By:
Truck, Curbside, Back Of Truck
Ships From:
South Carolina - Direct From Multiaqua
Choose Options

choose options:

Multiaqua MAC-060HE-01-32 Chiller Features:
- Product Type: Air Cooled Chiller.
- Compressor Type: Copeland Scroll.
- Refrigerant: R32.
- Heat Exchanger: Brazed Plate.
- Pump: 1/2 HP Stainless Steel Circulating Pump.
- Maximum Pump Head Pressure: 50 ft.
- Maximum Flow Rate: 14.4 GPM.
- Minimum Flow Rate: 8.0 GPM.
- Water Connections: 1" MPT Supply x 1-1/4" MPT Return.
- Expansion Tank Size: 2 Gallons.

Additional Information:
The Multiaqua MAC-060HE-01-32 is a factory-assembled and tested air-cooled liquid chiller designed for residential and light commercial hydronic cooling applications. The unit features a fully hermetic Copeland scroll compressor, low-sound condenser fan, and a high-efficiency stainless steel circulating pump. The evaporator utilizes ANSI Type 316 stainless steel brazed plate construction, while the air-cooled condenser incorporates rifled copper tubing mechanically bonded to aluminum fins for efficient heat transfer. The chiller is factory wired, tested, and charged with R32 refrigerant prior to shipment, providing dependable performance for chilled water systems.
