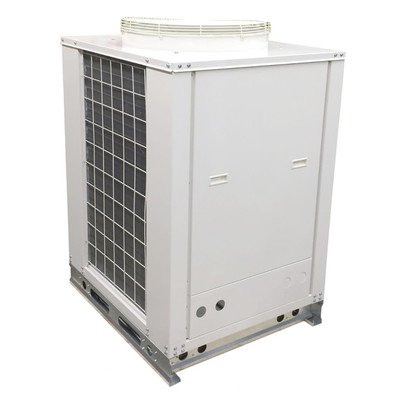

Multiaqua MAC-048HE-02-32-L 4 Ton Air Cooled Chiller with Low Ambient Kit, R32, 208/230V/3Ph

(No reviews yet) Write a Review

Quote Required

Quoted Item, Click The Request A Quote Button Below

Free ground shipping to the lower 48 states

Product ID:
Multiaqua-MAC-048HE-02-32-L
Weight:
805.00 (Lbs.)
Ships By:
Truck, Curbside, Back Of Truck
Ships From:
South Carolina - Direct From Multiaqua
Choose Options

choose options:

Multiaqua MAC-048HE-02-32-L Chiller Features:
- Product Type: Air Cooled Chiller.
- Compressor Type: Copeland Scroll.
- Refrigerant: R32.
- Heat Exchanger: Brazed Plate.
- Pump: 1/2 HP Stainless Steel Circulating Pump.
- Maximum Pump Head Pressure: 50 ft.
- Maximum Flow Rate: 11.5 GPM.
- Minimum Flow Rate: 8.0 GPM.
- Water Connections: 1" MPT Supply x 1-1/4" MPT Return.
- Expansion Tank Size: 2 Gallons

Additional Information:
The Multiaqua MAC-048HE-02-32-L is a factory-assembled and tested air-cooled liquid chiller designed for residential and light commercial hydronic cooling applications. The unit features a fully hermetic Copeland scroll compressor, low-sound condenser fan, and a high-efficiency stainless steel circulating pump. The evaporator utilizes ANSI Type 316 stainless steel brazed plate construction, while the air-cooled condenser incorporates rifled copper tubing mechanically bonded to aluminum fins for efficient heat transfer. The factory-installed low ambient kit allows operation in outdoor temperatures down to -20°F when used with a field-supplied crankcase heater. The chiller is factory wired, tested, and charged with R32 refrigerant prior to shipment.
