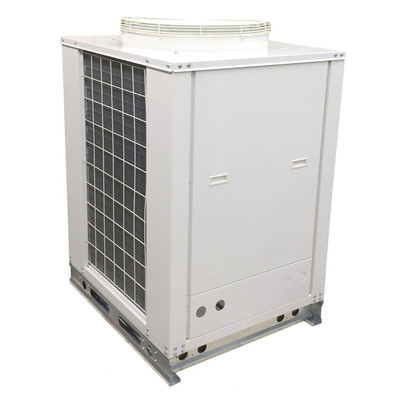

Multiaqua MAC-036HE-01-32 3 Ton Air Cooled Chiller, R32, 208/230V/1Ph

(No reviews yet) Write a Review

Quote Required

Quoted Item, Click The Request A Quote Button Below

Free ground shipping to the lower 48 states

Product ID:
Multiaqua-MAC-036HE-01-32
Weight:
805.00 (Lbs.)
Ships By:
Truck, Curbside, Back Of Truck
Ships From:
South Carolina - Direct From Multiaqua
Choose Options

choose options:

Multiaqua MAC-036HE-01-32 Chiller Features:
- Product Type: Air Cooled Chiller.
- Refrigerant: R32.
- Compressor Type: Copeland Scroll.
- Heat Exchanger: Brazed Plate.
- Pump: 1/2 HP Integral Circulating Pump.
- Maximum Pump Head Pressure: 50 ft.
- Maximum Flow Rate: 8.5 GPM.
- Minimum Flow Rate: 7.0 GPM.
- Water Connections: 1" MPT Supply x 1-1/4" MPT Return.
- Expansion Tank Size: 2 Gallons.

Additional Information:
The Multiaqua MAC-036HE-01-32 is a factory-assembled and tested air-cooled liquid chiller designed for residential and light commercial hydronic cooling applications. The unit features a Copeland scroll compressor, low-sound condenser fan, high-efficiency integral circulating pump, and R32 refrigerant. Constructed with a heavy-gauge galvanized steel cabinet and mounted on steel lifting rails, the chiller is fully factory tested and designed for dependable performance. The brazed plate evaporator utilizes ANSI Type 316 stainless steel construction, while the air-cooled condenser incorporates rifled copper tubing mechanically bonded to aluminum fins for efficient heat transfer.
