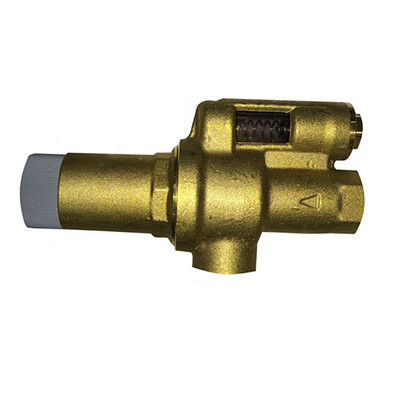

Multiaqua D146M1040 1-1/4 Inch Differential Pressure Bypass Valve, Honeywell Braukmann

(No reviews yet) Write a Review

$717.13

Usually Ships 3-5 Business Days

Free ground shipping to the lower 48 states

Product ID:
Multiaqua-D146M1040
Weight:
2.00 (Lbs.)
Ships By:
Free Ground
Ships From:
South Carolina - Direct From Multiaqua
Adding to cart… The item has been added
Multiaqua D146M1040 1-1/4 Inch Differential Pressure Bypass Valve Features:
- Size: 3/4 Inch FNPT.
- Valve Type: Differential Pressure Bypass Valve.
- Connection: Female Threaded.
- Pressure Adjustment Range: 0 to 17 PSI.
- Maximum Inlet Pressure: 85 PSI.
- Flow Rate: 18 GPM.
- Capacity: 120,000 BTU/H.
- Temperature Rating: 230°F.
- Brass Body.
- EPDM Diaphragm.
- Built-In Differential Pressure Indicator.

Additional Information:
The differential pressure regulator eliminates excessive pump head pressure when most radiator valves are closed due to reduced demand by controlling flow through a bypass line when the difference between supply and return exceeds the set point. The control maintains a constant differential pressure by opening the bypass whenever the pressure difference reaches the set point. The valve features a built-in differential pressure indicator, easy pressure adjustment, brass body construction, and requires no electrical connection for operation.
